KuKirin G3PRO Electric Scooter User Manual

1. Uvod

Welcome to the KuKirin G3PRO Electric Scooter user manual. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. The KuKirin G3PRO is designed for adults, featuring powerful dual motors, a large capacity battery, and off-road tires for a versatile riding experience. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

2. Varnostne informacije

Your safety is paramount. Always wear a helmet and appropriate protective gear (knee pads, elbow pads, gloves) when riding. Adhere to local traffic laws and regulations.

• Do not ride in heavy rain or through deep puddles.
• Pred vsako vožnjo se prepričajte, da so vsi vijaki in pritrdilni elementi zategnjeni.
• Familiarize yourself with the controls, including the accelerator and brakes, before riding at speed.
• Ohranjajte varno razdaljo od drugih vozil in pešcev.
• Avoid riding on slippery surfaces or steep inclines beyond the scooter's capability.
• Children should not operate this electric scooter.

3. Komponente večview

The KuKirin G3PRO Electric Scooter is comprised of several key components designed for performance and durability.

Slika 3.1: Na splošno view of the KuKirin G3PRO Electric Scooter, showing both unfolded and folded configurations.

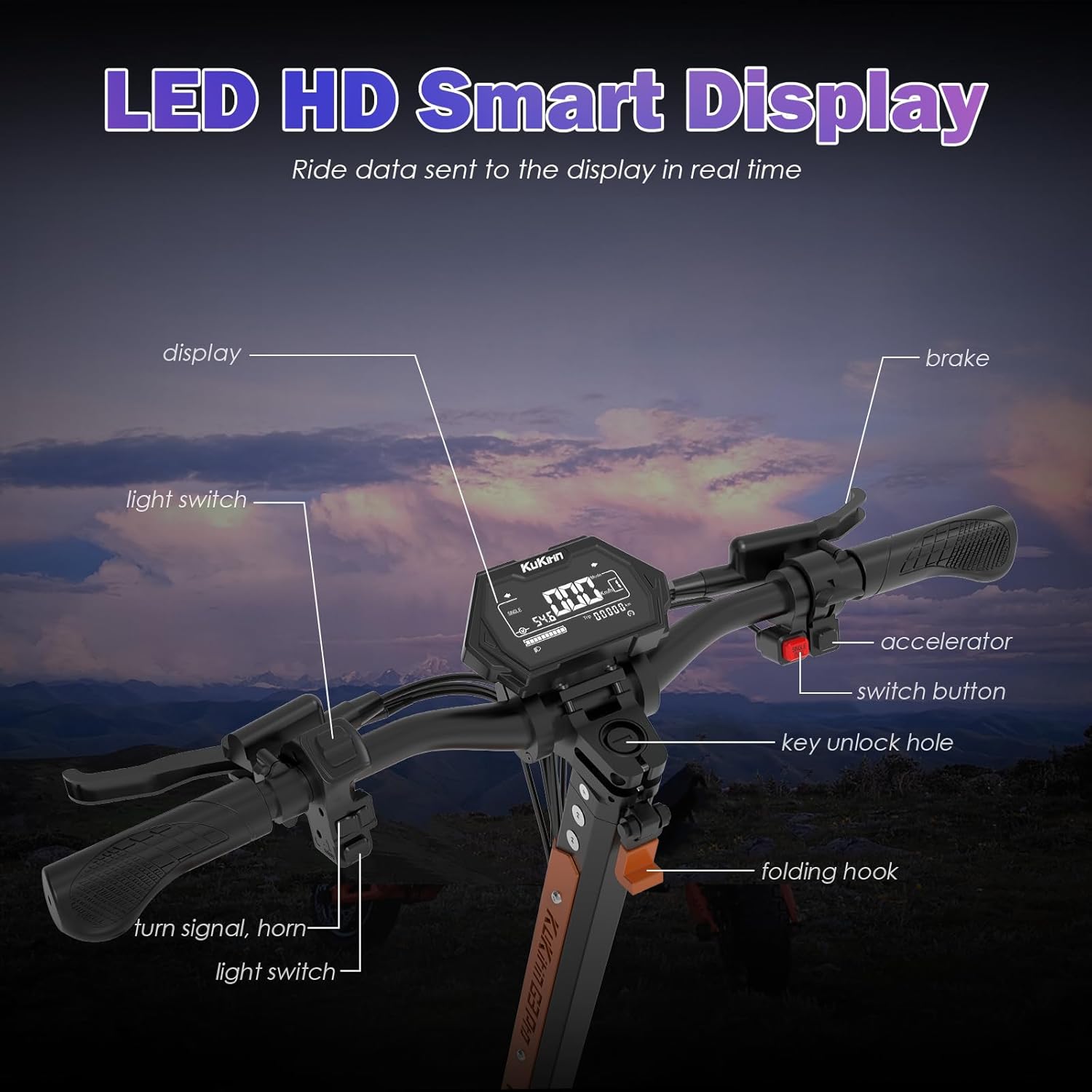

Figure 3.2: Close-up of the LED HD Smart Display and handlebar controls, including accelerator, brake, light switches, and folding hook.

Ključne značilnosti:

• Zmogljiv dvojni motor: Two 1200W motors (2400W total) for instant acceleration and speeds up to 40MPH (65KM/H).
• Baterija velike zmogljivosti: 52V/23AH battery offering up to 49 miles (80 km) range. The battery is removable for convenient charging.
• 10-inch Off-Road Tires: Designed for various terrains, providing excellent grip and stability.
• Dvojni sistem vzmetenja: Front and rear shock-absorbing arms with tuned damping springs for a comfortable ride over bumps.
• LED HD Display: Provides real-time data including gear, speed, and mileage.
• 11-Light System: Comprehensive lighting for enhanced night riding safety, including headlights, side lights, and tail lights.
• Oil Brakes: Front and rear oil brakes with 140mm disc brakes for reliable stopping power.
• Zložljiv dizajn: Allows for easier storage and transport.

4. Nastavitev

Your KuKirin G3PRO scooter comes mostly pre-assembled. Follow these steps for initial setup:

1. Razpakiranje: Previdno vzemite skuter in vso dodatno opremo iz embalaže.
2. Namestitev krmila:
   • Unfold the scooter and secure the main stem.
   • Attach the handlebars to the stem using the provided screws. Ensure they are securely fastened.
   • Adjust the brake levers and display to a comfortable riding position.
3. Začetni strošek:
   • Before first use, fully charge the battery. The battery can be charged while installed or removed.
   • Connect the charger to the scooter's charging port or directly to the battery.
   • Čas polnjenja je približno 10 ure.

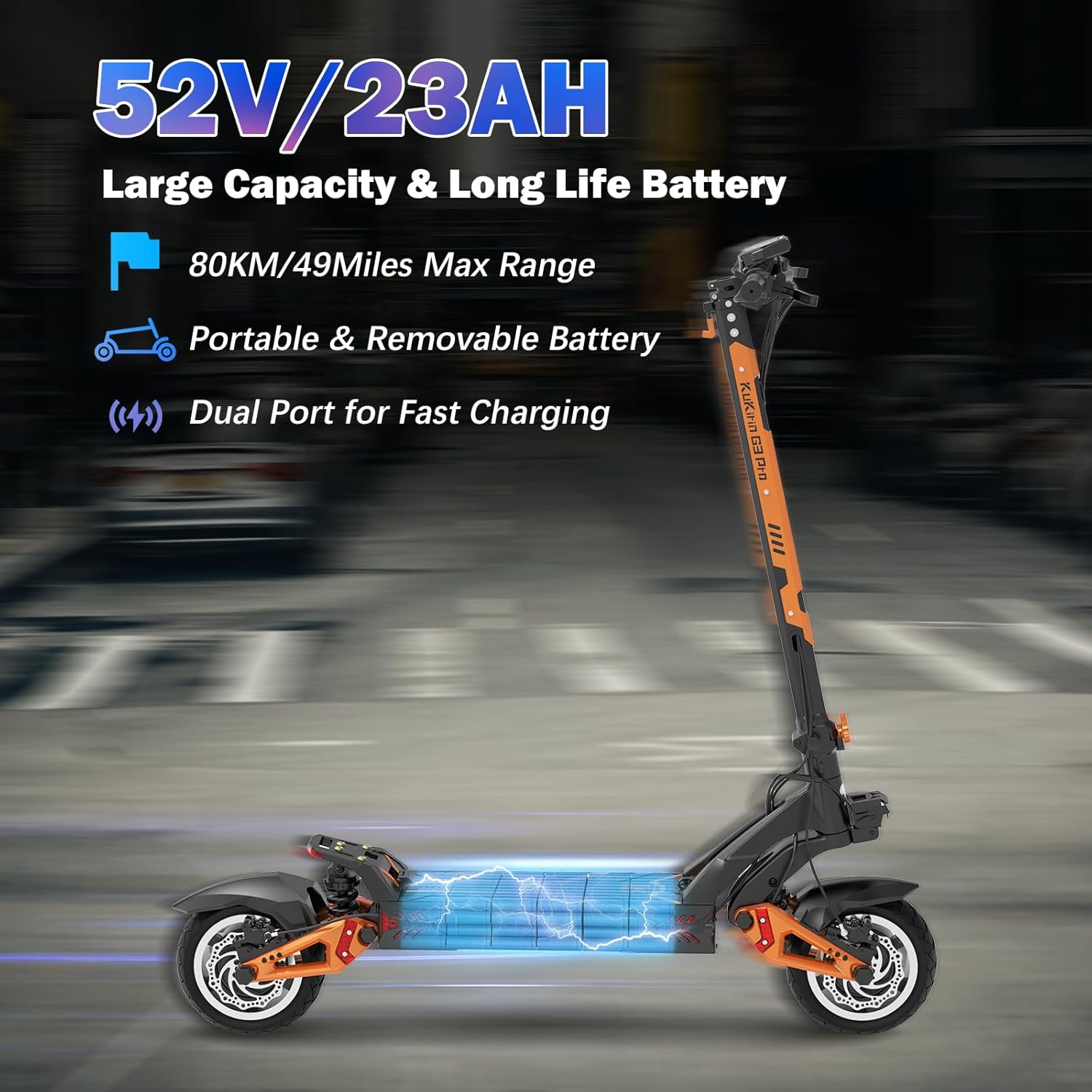

   Figure 4.1: Illustration of the 52V/23AH large capacity battery and its charging capabilities.



   Figure 4.2: The removable battery feature, allowing for individual charging and easy replacement.
4. Preverjanje tlaka v pnevmatikah: Za optimalno delovanje in varnost se prepričajte, da so pnevmatike napolnjene do priporočenega tlaka.
5. Nastavitev zavore: Verify that both front and rear brakes are functioning correctly and provide adequate stopping power. Adjust if necessary.

5. Navodila za uporabo

5.1 Vklop/izklop

• To power on, press and hold the power button on the display until the screen illuminates.
• Za izklop pritisnite in držite gumb za vklop, dokler se zaslon ne izklopi.

5.2 Načini vožnje

The G3PRO offers 3 speed modes and 2 power modes (single motor/dual motor) to suit various riding conditions and preferences.

• Načini hitrosti: Cycle through speed modes (Level 1, 2, 3) using the mode button on the display.
  • Level 1: Approximately 12 MPH (casual riding)
  • Level 2: Approximately 25-28 MPH (balanced performance)
  • Level 3: Up to 40 MPH (maximum speed)
• Načini napajanja: Switch between single and dual motor drive for different power outputs. Dual motor provides maximum acceleration and climbing ability.

Figure 5.1: Illustration highlighting the powerful dual 1200W motors and their performance capabilities.

5.3 Nasveti za vožnjo

• Start slowly and gradually increase speed as you become comfortable.
• Lean into turns for better stability.
• Use both brakes simultaneously for effective stopping.
• Bodite pozorni na svojo okolico in predvidite morebitne nevarnosti.
• The scooter is equipped with 11 lights for night riding. Ensure they are on when visibility is low.

Slika 5.2: Konecview of the 11-light system for enhanced visibility and safety during night rides.

5.4 Zlaganje in shranjevanje

Za zlaganje skuterja za shranjevanje ali prevoz:

1. Prepričajte se, da je skuter izklopljen.
2. Poiščite mehanizem za zlaganje na steblu.
3. Follow the specific instructions for your model to release the locking mechanism and fold the stem down towards the deck.
4. Secure the folded position using the designated latch or hook.

Figure 5.3: Dimensions of the KuKirin G3PRO Electric Scooter in both unfolded and folded states.

5.5 Uradni videoposnetki izdelkov

Watch these official videos from Kugookirin Direct for visual guides on setup and features.

6. Vzdrževanje

Redno vzdrževanje zagotavlja dolgo življenjsko dobo in varno delovanje vašega skuterja.

• Čiščenje: Obrišite skuter z oglasomamp krpo. Ne uporabljajte visokotlačnih vodnih curkov in skuterja ne potapljajte v vodo.
• Nega pnevmatik: Regularly check tire pressure and inspect for wear or damage. Replace tires when tread is worn.
• Pregled zavor: Check brake pads and discs for wear. Ensure brake levers operate smoothly and provide firm stopping power.
• Vzdrževanje baterije:
  • Baterijo po vsaki uporabi popolnoma napolnite, še posebej, če jo shranjujete dlje časa.
  • Izogibajte se popolni izpraznitvi baterije.
  • Skuter in baterijo shranjujte na hladnem in suhem mestu, stran od neposredne sončne svetlobe in ekstremnih temperatur.
• Preverjanje pritrdilnih elementov: Občasno preverite vse vijake in matice, da se prepričate, da so trdno priviti.
• Mazanje: Lubricate moving parts as needed, such as folding mechanisms.

Figure 6.1: The scooter's IP54 waterproof level, indicating resistance to splashes and light rain, but not immersion.

7. Odpravljanje težav

8. Specifikacije

9. Garancija in podpora

The KuKirin G3PRO Electric Scooter comes with a 12-month limited warranty.

• Garancijska doba: 12 mesecev od dneva nakupa.
• Politika vračila: 30-dnevna enostavna vračila.
• UL certifikat: Products are UL 2272 certified.
• Podpora strankam: For any questions, technical assistance, or warranty claims, please contact Kugookirin Direct customer service. They provide 24-hour after-sales technical service.
• Kontaktni podatki: Refer to your purchase documentation or the official Kugookirin webspletno mesto za najnovejše kontaktne podatke.
