1. Varnostna navodila
Pred uporabo kosilnice vedno preberite in razumite vsa varnostna opozorila in navodila. Neupoštevanje opozoril in navodil lahko povzroči električni udar, požar in/ali hude poškodbe.
Splošna varnostna opozorila
- Delovno območje naj bo čisto: Neurejena območja povzročajo nesreče.
- Upoštevajte okolje delovnega območja: Ne uporabljajte električnega orodja v damp or wet locations. Do not expose to rain. Keep work area well lit.
- Držite otroke proč: Do not let visitors contact the tool or extension cord. All visitors should be kept away from the work area.
- Pravilno se oblecite: Ne nosite ohlapnih oblačil ali nakita. Lahko se ujamejo v gibljive dele. Pri delu na prostem je priporočljiva uporaba gumijastih rokavic in večje obutve. Nosite zaščitno pokrivalo za lase, ki vsebuje dolge lase.
- Use safety glasses and hearing protection: Always use safety glasses. Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses.
- Ne pretiravajte: Ves čas ohranjajte pravilno nogo in ravnotežje.
- Skrbno vzdržujte orodje: Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and, if damaged, have them repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.
- Orodja za odklop: Disconnect the battery pack from the tool when not in use, before servicing, or when changing accessories.
- Izogibajte se nenamernemu zagonu: Preden vstavite baterijo, se prepričajte, da je stikalo v položaju za izklop.
- Preverite morebitne poškodovane dele: Pred nadaljnjo uporabo orodja je treba skrbno preveriti poškodovan ščitnik ali drug del, da se ugotovi, ali bo pravilno deloval in opravljal svojo predvideno funkcijo. Preverite poravnavo gibljivih delov, zatikanje gibljivih delov, zlom delov, pritrditev in vse druge pogoje, ki bi lahko vplivali na njegovo delovanje. Poškodovan ščitnik ali drug del mora pravilno popraviti ali zamenjati pooblaščeni servisni center, razen če je v tem priročniku za uporabo navedeno drugače.
2. Izdelek je končanview
The YARD FORCE iFlex LM F23 is a compact and agile cordless lawn mower designed for small to medium-sized lawns. It features a 12V/4.0Ah lithium-ion battery, a 23 cm cutting width, and a unique FreeTurn universal wheel for enhanced maneuverability.
Ključne značilnosti:
- Brezžično delovanje: Powered by a 12V/4.0Ah lithium-ion battery for freedom of movement.
- FreeTurn Universal Wheel: Front wheel rotates 360 degrees for exceptional maneuverability around obstacles.
- Funkcija mulčenja: Designed to finely cut grass clippings and return them to the lawn as natural fertilizer.
- Nastavljiva višina košnje: Three cutting height settings (30-60 mm) with a simple Push-n-Adjust button.
- Kompaktna zasnova: Ideal for urban gardens and smaller lawn areas up to 50 m².
- Brezkrtačni motor: Offers maintenance-free operation, robustness, reliability, and higher performance with less noise.
Vključene komponente:
- 1 x YARD FORCE iFlex LM F23 FreeTurn Cordless Lawn Mower
- 1 x iFlex 12V/4.0Ah Lithium-ion Battery
- 1 x iFlex Battery Charger
Slika: spredaj view of the YARD FORCE iFlex LM F23 Cordless Lawn Mower.
Image: The YARD FORCE iFlex LM F23 cordless lawn mower shown with its 12V 4.0Ah battery.
3. Nastavitev
3.1 Montaža
- Razpakiraj: Previdno vzemite vse komponente iz embalaže. Prepričajte se, da so prisotni vsi navedeni deli.
- Sklop ročaja: Attach the handle to the main body of the mower. Ensure all locking mechanisms or screws are securely fastened. Refer to the diagrams in the full PDF manual for specific handle attachment points.
- Preverite rezilo: Ensure the mulching blade is securely attached and free from damage.
3.2 Polnjenje in namestitev baterije
- Polnjenje baterije: Connect the iFlex charger to a power outlet. Insert the 12V/4.0Ah lithium-ion battery into the charger. Allow the battery to fully charge before first use. The charger will indicate when charging is complete.
- Namestite baterijo: Once charged, slide the battery pack firmly into the designated battery compartment on the mower handle until it clicks into place. Ensure it is seated correctly to establish electrical contact.
Image: The iFlex battery can also function as a power bank for other devices (e.g., charging a phone).
4. Navodila za uporabo
4.1 Zagon kosilnice
- Zagotovite varnost: Make sure the area is clear of debris, children, and pets. Wear appropriate safety gear.
- Engage Safety Button: Press and hold the safety button (usually located on the handle).
- Pull Start Lever: While holding the safety button, pull the start lever towards the handle. The motor will start. Release the safety button once the motor is running.
4.2 Nastavitev višine košnje
The YARD FORCE iFlex LM F23 features a convenient Push-n-Adjust function for changing the cutting height.
- Turn Off Mower: Always turn off the mower and remove the battery before adjusting the cutting height.
- Locate Adjustment Button: Find the orange Push-n-Adjust button on the mower deck.
- Izberite višino: Press the button and move the mower deck up or down to select one of the three cutting height positions (30 mm, 45 mm, 60 mm). Ensure it locks securely into place.

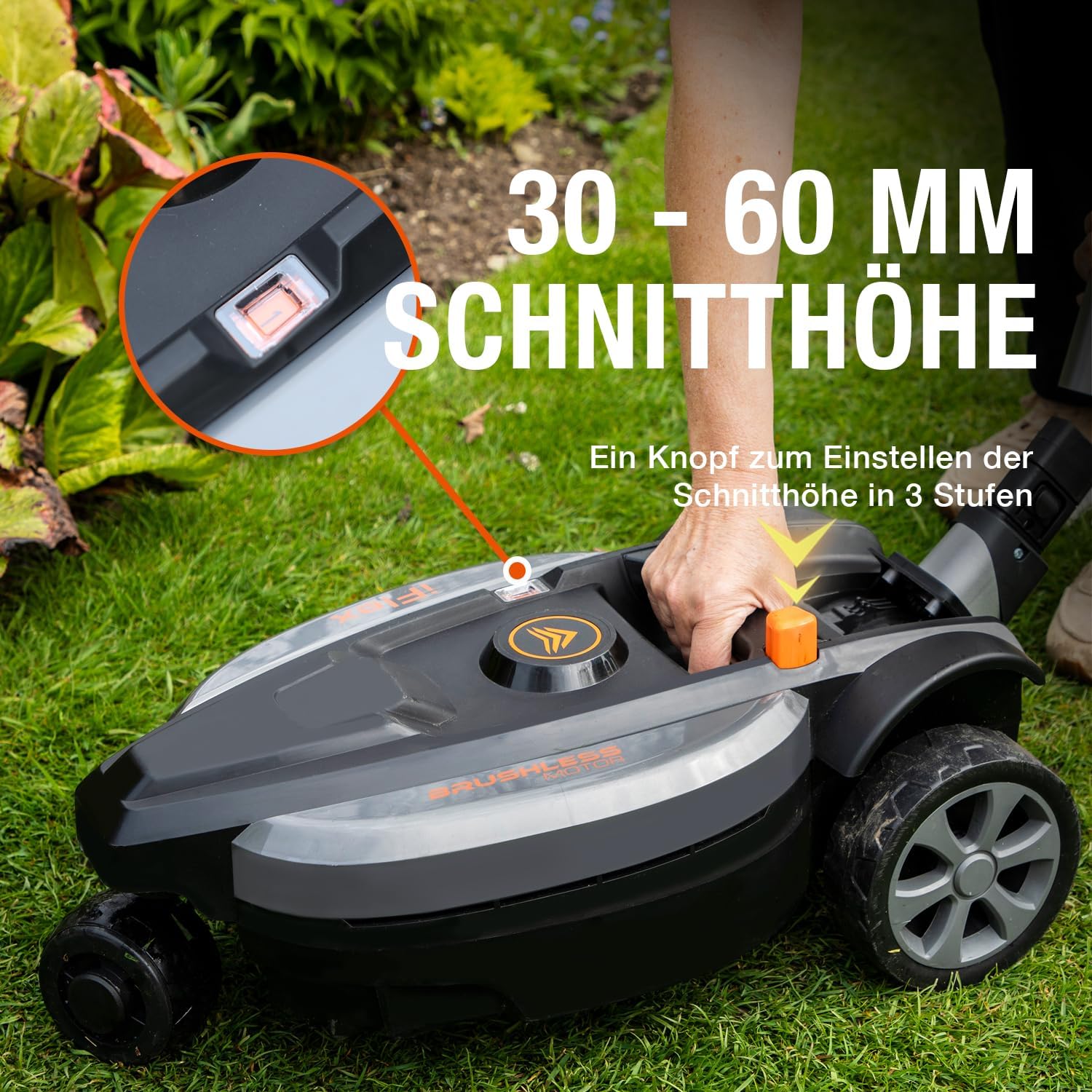

Image: Detail showing the Push-n-Adjust button for setting the cutting height between 30-60 mm.
Image: Close-up of the cutting height adjustment mechanism on the YARD FORCE iFlex LM F23.
4.3 Tehnike košnje
- Prekrivajoče se vozne pasove: For an even cut, overlap each mowing pass by a few centimeters.
- Mow in Strips: Mow in straight lines, turning at the end of each strip.
- FreeTurn Maneuverability: Utilize the 360-degree rotating front wheel to easily navigate around trees, flowerbeds, and other obstacles. The mower's design allows for mowing under garden furniture.
- Mulčenje: The mower is designed for mulching. For best results, mow frequently and avoid cutting more than one-third of the grass blade length at a time.
Image: The YARD FORCE iFlex LM F23 cordless lawn mower being used on a lawn.
Image: The YARD FORCE iFlex LM F23 demonstrating its extreme mobility and maneuverability around garden obstacles.
Image: The YARD FORCE iFlex LM F23 FreeTurn mulching mower in action, highlighting its mulching capability.
5. Vzdrževanje
Redno vzdrževanje zagotavlja optimalno delovanje in podaljšuje življenjsko dobo vaše kosilnice.
5.1 Čiščenje
- Odklopite baterijo: Pred čiščenjem ali kakršnim koli vzdrževanjem vedno odstranite baterijski paket.
- Čista paluba: After each use, clean the underside of the mower deck to remove grass clippings and debris. Use a brush or scraper. Do not use water directly on electrical components.
- Čista zunanjost: Obrišite zunanje površine z oglasomamp krpo.
5.2 Nega rezila
- Preglejte rezilo: Regularly inspect the mulching blade for sharpness and damage. A dull or damaged blade can lead to poor cutting performance and strain the motor.
- Sharpen/Replace Blade: If the blade is dull, have it sharpened by a qualified service technician. If the blade is bent, cracked, or severely damaged, it must be replaced with an original YARD FORCE replacement blade.
- Blade Removal/Installation: Refer to the detailed instructions in the full PDF manual for safe blade removal and installation procedures. Always wear heavy-duty gloves when handling the blade.
Slika: Spodnja stran view of the YARD FORCE iFlex LM F23, showing the mulching blade for inspection and maintenance.
5.3 Shranjevanje
- Očistite pred shranjevanjem: Thoroughly clean the mower before storing it for extended periods.
- Hraniti na suhem mestu: Store the mower and battery in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
- Shranjevanje baterije: Store the battery partially charged (around 50%) if storing for a long time. Recharge it every few months to maintain battery health.
6. Odpravljanje težav
This section addresses common issues you might encounter with your YARD FORCE iFlex LM F23 lawn mower.
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Kosilnica se ne zažene | Battery not charged or improperly installed; Safety button/start lever not engaged; Overload protection activated. | Ensure battery is fully charged and correctly inserted. Press safety button and pull start lever simultaneously. Remove battery, clear any grass buildup, and re-insert battery. |
| Slaba učinkovitost rezanja | Topo ali poškodovano rezilo; Kosilnica zamašena s travo; Višina košnje prenizka za razmere na travi. | Inspect and sharpen/replace blade. Clean underside of mower deck. Increase cutting height. Mow when grass is dry. |
| Kosilnica se med delovanjem ustavi | Battery low; Overload protection activated (e.g., thick grass); Battery connection loose. | Recharge battery. Clear thick grass, raise cutting height. Check battery connection and ensure it is firmly seated. |
| Prekomerne vibracije | Ukrivljeno ali neuravnoteženo rezilo; v območju rezila so se zataknili ostanki. | Remove battery, inspect blade for damage or imbalance. Clear any debris. Have blade replaced if bent. |
7. Specifikacije
Technical data for the YARD FORCE iFlex LM F23 Cordless Lawn Mower.
| Funkcija | Specifikacija |
|---|---|
| Znamka | Sila dvorišča |
| Številka modela | LM F23 |
| Vir napajanja | Napajanje na baterije |
| Vrsta baterije | 12V / 4.0Ah Lithium-ion |
| Material | Plastika |
| Širina reza | 23 cm |
| Nastavitev višine reza | 3 položajev (30 - 60 mm) |
| Način delovanja | Priročnik |
| Mere izdelka (D x Š x V) | 52.5 x 31 x 28.5 cm |
| Teža predmeta | 5.4 kilogramov |
| Priporočena površina trate | Do 50 m² |
| Zahtevana montaža | ja |
| Država izvora | Kitajska |
8. Garancija in podpora
8.1 Informacije o garanciji
YARD FORCE products are manufactured to high-quality standards and come with a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official YARD FORCE webZa podrobne garancijske pogoje, specifične za vašo regijo, obiščite spletno mesto.
8.2 Podpora strankam
For technical assistance, spare parts, or service inquiries, please contact YARD FORCE customer support. Contact details can typically be found on the official YARD FORCE webspletnem mestu ali v dokumentaciji, ki je priložena vašemu izdelku.
- Spletni viri: Obiščite YARD FORCE official webmesto za pogosta vprašanja, registracijo izdelka in dodatna podporna gradiva.
- Servisni centri: Information on authorized service centers can be found on the YARD FORCE webmesto.
