Samsung Smart AI Wash Washer Dryer WD18T User Manual

1. Uvod

Thank you for choosing the Samsung Smart AI Wash Washer Dryer, model WD18T. This appliance combines advanced washing and drying technologies to provide efficient and convenient laundry care. Please read this manual carefully before using the appliance to ensure safe and optimal operation. Keep this manual for future reference.

2. Varnostne informacije

Pomembna varnostna navodila:

• Vedno upoštevajte osnovne previdnostne ukrepe, vključno z naslednjim:
• Te naprave ne nameščajte ali shranjujte na mestu, kjer bo izpostavljena vremenskim vplivom ali nizkim temperaturam.
• Ne popravljajte ali zamenjujte nobenega dela naprave in ne poskušajte izvajati nobenega servisiranja, razen če je to izrecno priporočeno v tem priročniku ali v objavljenih navodilih za popravilo za uporabnika, ki jih razumete in za katere imate potrebna znanja.
• Vnetljivih materialov in hlapov hranite stran od naprave.
• Prepričajte se, da je naprava pravilno ozemljena.
• Pred čiščenjem ali kakršnim koli vzdrževanjem izključite napravo iz električnega omrežja.
• Otrokom ne dovolite, da se igrajo na ali v napravi. Ko napravo uporabljate v bližini otrok, je potreben natančen nadzor.

3. Izdelek je končanview

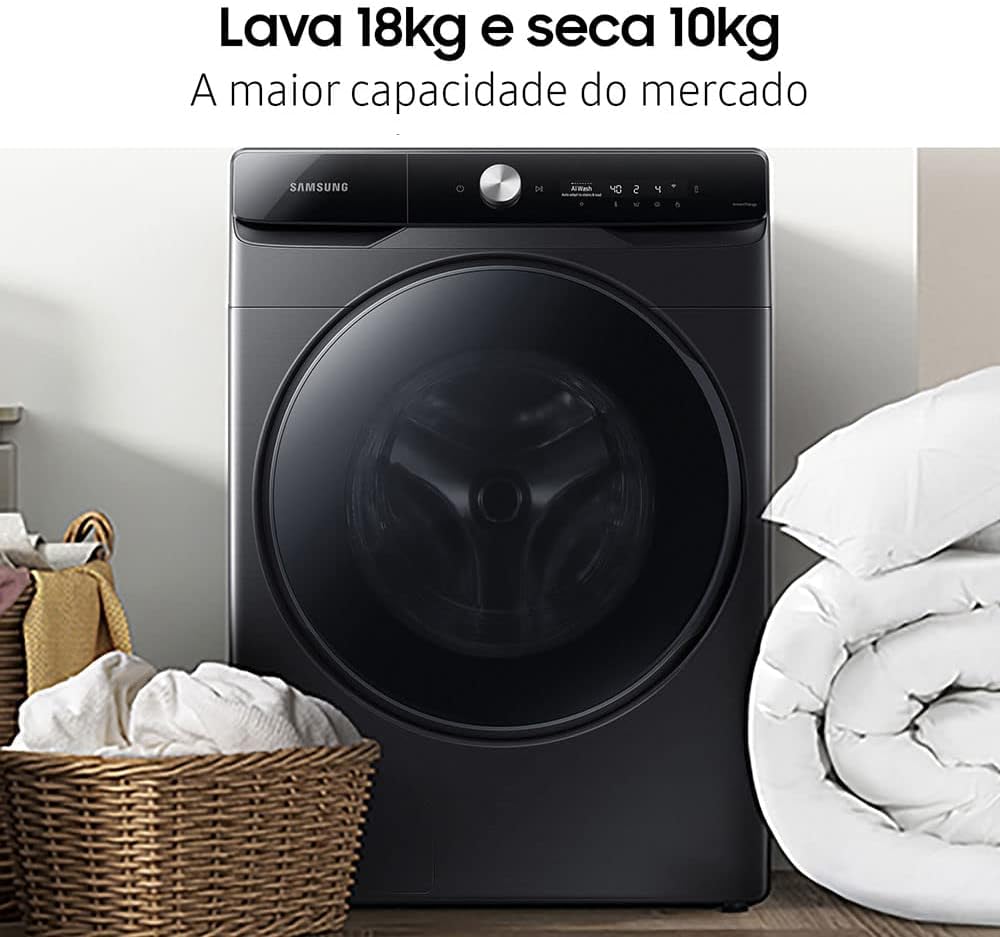

The Samsung Smart AI Wash Washer Dryer WD18T is designed for high capacity and energy efficiency, featuring a Digital Inverter motor for quiet operation and durability.

4. Nastavitev

Proper installation is crucial for the performance and longevity of your washer dryer. It is recommended to have a qualified technician perform the installation.

4.1 Razpakiranje

• Remove all packaging materials, including the shipping bolts from the rear of the appliance. Keep the packaging for future transport if needed.

4.2 Lokacija

• Place the appliance on a firm, level floor. Ensure there is adequate space around the unit for ventilation and maintenance.

4.3 Izravnavanje

• Adjust the leveling feet to ensure the appliance is perfectly level. An unlevel machine can cause excessive vibration and noise during operation.

4.4 Priključek za oskrbo z vodo

• Connect the cold water inlet hose to the cold water tap. If your model supports hot water, connect the hot water inlet hose to the hot water tap. Ensure connections are tight to prevent leaks.

4.5 Namestitev odtočne cevi

• Securely attach the drain hose to a standpipe or laundry tub. The drain hose must be positioned between 60 cm and 90 cm (24 to 35 inches) from the floor. Ensure the hose is not kinked or obstructed. Incorrect drain hose installation can lead to improper drying performance.

4.6 Napajalni priključek

• Napajalni kabel priključite v ozemljeno električno vtičnico 127 V. Ne uporabljajte podaljškov.

5. Navodila za uporabo

This section guides you through the daily use of your Samsung Smart AI Wash Washer Dryer.

5.1 Vlaganje perila

• Open the door and load clothes loosely into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. For optimal drying, do not exceed the 10kg dry capacity.

5.2 Dodajanje detergenta in mehčalca

• The appliance features an automatic detergent and softener dispenser. Fill the respective compartments with liquid detergent and fabric softener. The machine will dispense the appropriate amount based on the selected cycle and load size.
• For manual dispensing or specific additives, refer to the markings on the dispenser tray.

5.3 Izbira cikla pranja

Turn the cycle selector knob to choose from various programs:

• Bombaž: For general cotton items.
• Bombaž+: Enhanced cotton wash.
• TurboWash 59: Hitro pranje za rahlo umazano perilo.
• mešanica: Za mešane tkanine.
• Sintetika: Za sintetične tkanine.
• Anti-Allergic: For items requiring thorough allergen removal.
• Nega dojenčka: Nežno pranje otroških oblačil.
• Občutljivo: Za občutljive predmete.
• Hand Wash/Wool: For hand-washable or wool items.
• Hitro 14: Very fast wash for small, lightly soiled loads.
• Wash+Dry (8kg): Combined wash and dry cycle for up to 8kg.
• Suho: Drying only cycle.

5.4 Zagon cikla

• After selecting the desired cycle and adding detergent, press the Start/Pause button to begin the cycle.
• The AI Wash feature automatically detects fabric type and soil level to optimize washing performance.

5.5 Povezljivost SmartThings

• Connect your washer dryer to the Samsung SmartThings app for remote control, cycle recommendations, and status notifications.

6. Vzdrževanje

Redno vzdrževanje zagotavlja učinkovito delovanje vaše naprave in podaljšuje njeno življenjsko dobo.

6.1 Čiščenje bobna

• Use the 'Drum Clean' or 'Limpeza do Cesto' cycle regularly to remove detergent residue and bacteria from the drum.

6.2 Čiščenje dozirne posode za detergent

• Pull out the detergent dispenser drawer and rinse it under running water to remove any buildup. Clean the housing with a brush if necessary.

6.3 Čiščenje filtra za umazanijo

• Locate the debris filter at the bottom front of the appliance. Open the cover, drain any residual water, and then unscrew the filter. Clean it thoroughly and reinsert.

6.4 Zunanje čiščenje

• Obrišite zunanje površine z mehko damp krpo. Ne uporabljajte abrazivnih čistil ali topil.

7. Odpravljanje težav

Če imate težave z napravo, si pred klicem na servis oglejte naslednje pogoste težave in rešitve.

7.1 Appliance Does Not Start

• Prepričajte se, da je napajalni kabel varno priključen v vtičnico.
• Preverite, ali so vrata popolnoma zaprta.
• Preverite, ali je bil pritisnjen gumb Zagon/Premor.

7.2 Clothes Not Drying Properly

• Odtočna cev: Ensure the drain hose is installed correctly, not kinked, and positioned at the recommended height (60-90 cm from the floor). Incorrect installation can severely impact drying performance.
• Preobremenitev: Do not overload the machine beyond the 10kg drying capacity.
• Izbira cikla: Ensure the appropriate drying cycle is selected for the fabric type and load size.
• Filter: Clean the debris filter as described in the maintenance section.

7.3 Detergent Not Dispensing / Residue in Dispenser

• Clean the detergent dispenser drawer thoroughly to remove any clogs or residue.
• Ensure you are using the correct type and amount of detergent for your machine.

7.4 Prekomerni hrup ali vibracije

• Check if the appliance is perfectly level. Adjust the leveling feet if necessary.
• Ensure all shipping bolts have been removed from the back of the machine.
• Verify that the load is balanced inside the drum.

8. Specifikacije

9. Garancija in podpora

Informacije o garanciji:

Your Samsung Smart AI Wash Washer Dryer WD18T comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the 10-year warranty on the Digital Inverter motor.

Podpora strankam:

For technical assistance, service requests, or to purchase genuine Samsung parts and accessories, please contact Samsung Customer Service. You can find contact information on the official Samsung webspletnem mestu ali v garancijski dokumentaciji.

When contacting support, please have your model number (WD18T) and serial number ready.
