1Zpresso J-Max Manual Coffee Grinder User Manual

Uvod

Thank you for choosing the 1Zpresso J-Max Manual Coffee Grinder. This manual provides detailed instructions for the proper setup, operation, maintenance, and troubleshooting of your grinder. Please read this manual thoroughly before using your J-Max grinder to ensure optimal performance and longevity.

Sestavine izdelka

Your 1Zpresso J-Max grinder comes with several key components designed for precision and durability.

The 1Zpresso J-Max Manual Coffee Grinder, shown with its handle, internal burr assembly, and protective carrying case.

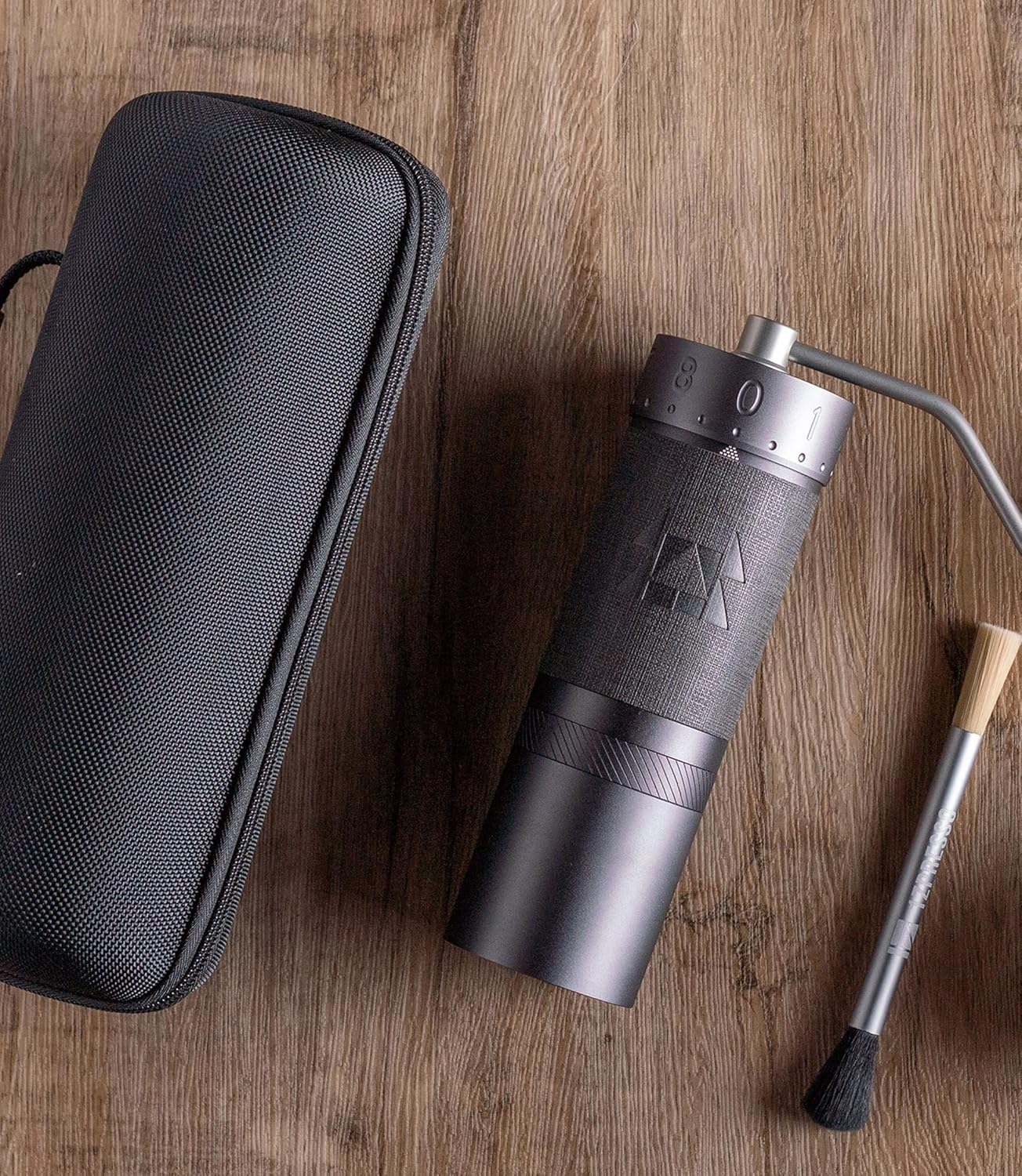

The J-Max grinder alongside its custom carrying case and a cleaning brush, highlighting the portability and maintenance accessories.

Eksplodiral je view of the 1Zpresso J-Max, showing all its main components including the handle, top cap, adjustment dial, main body, burr assembly, shaft, and magnetic catch cup.

Ključni deli:

• Telo mlinčka: The main housing of the grinder.
• Ročaj: Detachable handle for grinding.
• Zgornja kapica: Secures the handle and provides access to the bean hopper.
• Nastavitveni gumb: External dial for precise grind size adjustments.
• Burr Set: High-quality coated burr for efficient grinding.
• Central Shaft: Connects the burr to the handle.
• Magnetna skodelica za lovljenje: Collects ground coffee, attaches securely to the main body.

Nastavitev

Before your first use, ensure all components are clean and properly assembled.

1. Razpakiraj: Previdno odstranite vse komponente iz embalaže.
2. Začetno čiščenje: Obrišite zunanjost z oglasomamp cloth. For internal components, use the included cleaning brush to remove any manufacturing residue. Do not wash the burr set with water.
3. Sestavite: Ensure the burr set is securely seated on the central shaft. Attach the magnetic catch cup to the bottom of the grinder body. Place the top cap on the grinder body and insert the handle onto the central shaft.
4. Zero Point Calibration (Optional but Recommended):
   • Turn the adjustment dial clockwise until the burrs are fully closed and you can no longer turn it. This is your true zero point.
   • Note the number on the dial that aligns with the indicator. This is your reference zero. If it's not '0', you can adjust the outer ring to align it. Refer to the 1Zpresso official website for detailed calibration instructions if needed.

Navodila za uporabo

Grind Size Adjustment:

Podrobno view of the external grind adjustment dial on the 1Zpresso J-Max, showing the numbered settings and indicator.

The J-Max features an external adjustment dial with over 400 clicks, with each click representing an 8.8-micron shift. This allows for extremely precise control over your grind size.

• Turn the dial clockwise for a finer grind.
• Turn the dial counter-clockwise for a coarser grind.

Za običajne metode kuhanja kave glejte naslednja splošna navodila:

Note: These are starting points. Optimal grind size may vary depending on your specific beans, brewing equipment, and personal preference. Adjust in small increments to find your ideal setting.

Mletje kave:

1. Open Top Cap: Remove the top cap and handle.
2. Dodajte fižol: Pour your desired amount of whole coffee beans into the hopper. The J-Max has a capacity of approximately 35-40g, depending on bean density.
3. Replace Top Cap and Handle: Securely place the top cap back on and insert the handle onto the central shaft.
4. Mletje: Hold the grinder firmly with one hand and turn the handle clockwise with the other. Apply steady, consistent pressure.
5. Zbiranje razlogov: Once grinding is complete, remove the magnetic catch cup from the bottom of the grinder. The grounds are now ready for brewing.

Vzdrževanje

Regular cleaning and proper care will ensure your 1Zpresso J-Max grinder performs consistently for years.

Dnevno čiščenje:

• After each use, tap the grinder gently to dislodge any remaining grounds.
• Use the included cleaning brush to sweep out any fine particles from the burr set and catch cup.

Globinsko čiščenje (občasno):

For a more thorough cleaning, you may disassemble the grinder. This is recommended every few weeks or as needed, depending on usage.

Bližnji posnetek view of the inner burr and central shaft assembly of the 1Zpresso J-Max, detached from the main body.

The 1Zpresso J-Max grinder with its magnetic catch cup detached, revealing the bottom of the burr assembly and the magnetic attachment points.

A detailed image showing the magnetic connection mechanism between the main body of the 1Zpresso J-Max grinder and its catch cup.

1. Demontaža:
   • Remove the handle and top cap.
   • Unscrew the adjustment dial completely until it separates from the main body.
   • Carefully remove the upper bearing cap and the upper bearing.
   • Gently pull the central shaft and burr assembly out from the bottom of the grinder body.
   • Odstranite magnetno lovilno skodelico.
2. Čiščenje: Use the cleaning brush to thoroughly remove all coffee grounds from the burr set, central shaft, and inside the grinder body. A soft, dry cloth can be used for other parts.
3. Ponovno sestavljanje: Reverse the disassembly steps. Ensure all parts are dry before reassembly. Make sure the burr set is correctly aligned and seated on the central shaft. Re-calibrate your zero point after reassembly if necessary.

Important: Do not wash the burr set or bearings with water. Water can cause rust and damage the precision components. Only use the cleaning brush and a dry cloth.

Odpravljanje težav

If you encounter any issues with your 1Zpresso J-Max grinder, refer to the common problems and solutions below.

If the problem persists after attempting these solutions, please contact 1Zpresso customer support for further assistance.

Specifikacije

Garancija in podpora

1Zpresso products are designed for durability and performance. For warranty information, product registration, or technical support, please visit the official 1Zpresso webspletno mesto ali se obrnite neposredno na njihovo službo za stranke. Shranite račun kot dokazilo o nakupu.
