PARKSIDE PSSPA 20-Li Cordless Jigsaw User Manual

1. Uvod

Thank you for choosing the PARKSIDE PSSPA 20-Li Cordless Jigsaw. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your tool. Please read this manual thoroughly before first use and keep it for future reference.

The PARKSIDE PSSPA 20-Li is a powerful cordless jigsaw designed for precise cutting in various materials, featuring a brushless motor for extended life and adjustable settings for optimal performance.

Image 1.1: The PARKSIDE PSSPA 20-Li Cordless Jigsaw. This image shows the overall design of the jigsaw, highlighting its ergonomic grip, blade guard, and battery slot.

2. Varnostna navodila

Pri uporabi električnega orodja vedno upoštevajte osnovne varnostne ukrepe, da zmanjšate tveganje požara, električnega udara in telesnih poškodb. Ta priročnik imejte pri roki za hitro uporabo.

Splošna varnostna opozorila za električno orodje:

• Varnost na delovnem območju: Delovno območje naj bo čisto in dobro osvetljeno. Ne uporabljajte električnega orodja v eksplozivnih okoljih, na primer v prisotnosti vnetljivih tekočin, plinov ali prahu.
• Električna varnost: Izogibajte se telesnemu stiku z ozemljenimi površinami. Električnega orodja ne izpostavljajte dežju ali mokrim razmeram.
• Osebna varnost: Always wear eye protection, hearing protection, and a dust mask. Dress properly. Do not overreach. Maintain proper footing and balance at all times.
• Uporaba in nega električnega orodja: Ne silite električnega orodja. Uporabljajte pravilno električno orodje za vašo uporabo. Preden izvajate kakršne koli nastavitve, menjate pribor ali shranjujete električno orodje, izključite vtič iz vtičnice in/ali odstranite baterijo iz električnega orodja.
• Uporaba in nega baterijskega orodja: Polnite samo s polnilnikom, ki ga je določil proizvajalec. Električno orodje uporabljajte samo s posebej za to namenjenimi baterijskimi paketi.

Posebna varnost pri delu z vbodno žago:

• Električno orodje držite za izolirane prijemalne površine, ko izvajate delo, pri katerem lahko rezalni pribor pride v stik s skrito napeljavo ali lastnim kablom.
• Uporabite clamps ali drug praktičen način za pritrditev in podporo obdelovanca na stabilno platformo.
• Ensure the blade is securely fastened before operation.
• Rezila se ne dotikajte takoj po uporabi, saj je lahko vroče.

3. Značilnosti izdelka

The PARKSIDE PSSPA 20-Li Jigsaw is equipped with advanced features for enhanced performance and user convenience:

• Brezkrtačni motor: Provides less wear for extended tool life and efficient operation.
• Nastavljivo nihalno delovanje: 3-position pendulum stroke for optimal curve cutting and faster work progress. A fine-cut function without pendulum action is also available.
• Nadzor spremenljive hitrosti: 7 speed settings, including 1 automatic mode and 6 adjustable speeds, for precise control over different materials. Maximum speed of 3800 strokes per minute.
• Adjustable Cutting Angles: 5 adjustable cutting angles (0°, 22.5°, 45°) for versatile applications.
• Vgrajena LED delovna luč: Features two advanced functions: illumination before machine start and illumination for approximately 10 seconds after operation.
• Keyless SAW LOCK Chuck: Allows for easy and quick saw blade changes.
• Splinter Guard: Prevents splintering for cleaner cuts.
• Funkcija puhala: Ensures a splinter-free cutting line by clearing sawdust.
• External Dust Extraction Connection: With adapter for connecting to an external vacuum system.
• Transparent Blade Guard: Foldable and removable for safety and visibility.
• Ergonomic Softcoat Coating: Zagotavlja udoben in varen oprijem.
• Plastic Glider: Protects the workpiece surface.
• Združljivost: Part of the PARKSIDE X 20V Team series, compatible with 20V (2Ah) / 20V (4Ah) batteries (battery and charger not included).

Image 3.1: Illustration of the jigsaw's adjustable pendulum action. This image visually represents the different cutting angles and pendulum settings available on the tool.

Image 3.2: The PARKSIDE X 20V Team system. This image shows the central battery and charger surrounded by various compatible tools, illustrating the versatility of the 20V battery platform.

4. Kaj je v škatli

Upon unpacking your PARKSIDE PSSPA 20-Li Jigsaw, please ensure all listed items are present:

• 1 x Plastic Glider
• 2 x žagini listi za les (izdelano v Švici)
• 1 x Kovinsko žagin list (izdelano v Švici)
• 1 x Vzporedno vodilo
• 1 x imbus ključ
• 1 x Adapter for External Dust Extraction System

Opomba: Baterija in polnilnik nista priložena in ju je treba kupiti posebej.

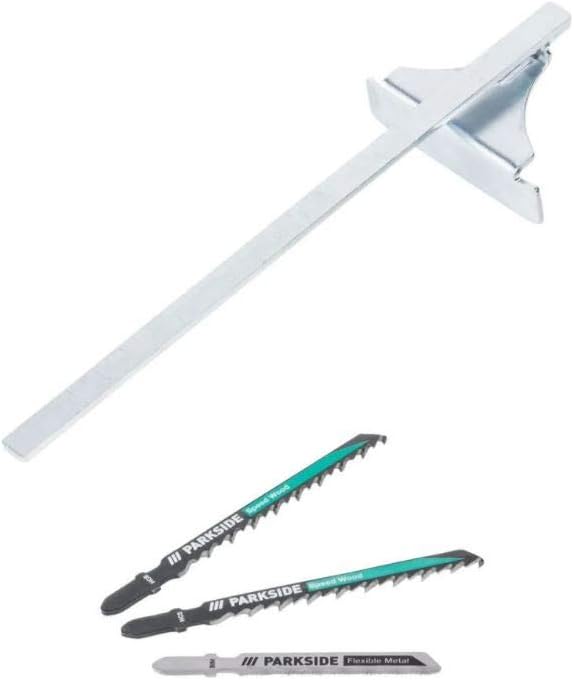

Image 4.1: Included accessories for the jigsaw. This image displays the various saw blades (for wood and metal) and the parallel guide that come with the tool.

Image 4.2: The robust carrying case for the jigsaw. This image shows the durable case designed for storing and transporting the tool and its accessories.

Image 4.3: Visual representation indicating that the battery and charger are sold separately. This image clearly shows a battery and charger with a red cross over them.

5. Nastavitev

5.1 Installing/Changing Saw Blades

1. Prepričajte se, da je orodje izklopljeno in da je baterijski paket odstranjen.
2. Open the keyless SAW LOCK chuck by pushing the lever.
3. Insert the desired saw blade into the chuck with the teeth facing forward. Ensure it is fully seated.
4. Release the lever to secure the blade. Gently pull on the blade to confirm it is locked in place.

5.2 Pritrditev baterijskega sklopa

1. Align the battery pack with the battery slot on the jigsaw.
2. Potisnite baterijski sklop v režo, dokler se ne zaskoči.
3. Za odstranitev pritisnite gumb za sprostitev na baterijskem paketu in ga izvlecite.

5.3 Adjusting Cutting Angle (Bevel Cut)

1. Loosen the base plate adjustment screws.
2. Tilt the base plate to the desired angle (0°, 22.5°, or 45°). Use the angle markings for reference.
3. Tighten the adjustment screws firmly to secure the base plate.

6. Delovanje

6.1 Vklop/izklop

• To turn on, press the ON/OFF switch. The LED work light will illuminate.
• To turn off, release the ON/OFF switch. The LED work light will remain on for approximately 10 seconds after release.

6.2 Prilagajanje hitrosti

The jigsaw offers 7 speed settings. Use the speed selector dial to choose the appropriate speed for your material:

• Samodejni način: The tool automatically adjusts speed based on load.
• Adjustable Speeds (1-6): Manually select a speed for consistent cutting. Lower speeds are suitable for harder materials or intricate cuts, while higher speeds are for softer materials and faster cuts.

6.3 Setting Pendulum Action

The pendulum action can be adjusted in 3 positions, plus a fine-cut (0) setting:

• Position 0 (Fine Cut): No pendulum action, for very fine and precise cuts, especially in delicate materials.
• Položaji 1-3: Incrasing pendulum action for faster cutting in wood and other soft materials. Higher settings are for rougher, faster cuts.

Adjust the pendulum action using the lever on the side of the tool.

Image 6.1: The PARKSIDE PSSPA 20-Li Jigsaw in action, cutting a wooden workpiece. This image demonstrates the tool's practical application during a cutting task.

6.4 Sesanje prahu

For a cleaner work environment and improved visibility of the cutting line, connect an external dust extraction system using the provided adapter. The integrated blower function also helps keep the cutting line clear.

7. Vzdrževanje

Redno vzdrževanje zagotavlja dolgo življenjsko dobo in optimalno delovanje vaše vbodne žage.

7.1 Čiščenje

• Pred čiščenjem vedno odstranite baterijo.
• Ohišje orodja očistite z mehko krpoamp krpo. Ne uporabljajte abrazivnih čistil ali topil.
• Regularly clear sawdust and debris from the ventilation openings and the blade area. Use compressed air if available.

7.2 Nega rezila

• Inspect saw blades before each use for sharpness and damage. Replace dull or damaged blades immediately.
• Rezila shranjujte na suhem mestu, da preprečite rjavenje.

7.3 Shranjevanje

Store the jigsaw in its carrying case in a dry, secure place, out of reach of children. Ensure the battery is removed if storing for extended periods.

8. Odpravljanje težav

Ta razdelek obravnava pogoste težave, na katere lahko naletite pri uporabi vbodne žage.

9. Specifikacije

10. Garancija in podpora

PARKSIDE products are manufactured to strict quality standards and undergo thorough quality control before leaving the factory. In the unlikely event of a defect, please contact your retailer or the PARKSIDE customer service department for assistance.

Please retain your proof of purchase (receipt) as it will be required for any warranty claims. The warranty period and conditions may vary by region and retailer.

For further support, technical assistance, or to inquire about spare parts and accessories, please refer to the contact information provided with your purchase or visit the official PARKSIDE webmesto.
