1. Uvod
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your PEDROLLO Electrobomba Top 5N submersible pump. Please read this manual thoroughly before installing or operating the pump to ensure proper function and to prevent injury or damage. Keep this manual in a safe place for future reference.
Figure 1: Pedrollo Top 5N Submersible Pump. This image shows the compact design of the pump, suitable for various water transfer applications.
2. Varnostna navodila
Za zmanjšanje tveganja električnega udara, poškodb ali požara vedno upoštevajte naslednje varnostne ukrepe:
- Električna varnost: Prepričajte se, da napajanje ustreza volumnu črpalketage and frequency specifications. Always connect the pump to a properly grounded outlet. Do not operate the pump with a damaged power cord or plug. Disconnect power before performing any maintenance or installation.
- Temperatura vode: Do not use the pump for liquids exceeding 40°C (104°F).
- Vrsta tekočine: This pump is designed for clear water. Do not use it for flammable, corrosive, or explosive liquids, or liquids containing abrasive particles.
- Namestitev: Ensure the pump is installed in a stable and secure position. Do not lift the pump by its power cable.
- Otroci in hišni ljubljenčki: Med delovanjem črpalke naj se otroci in hišni ljubljenčki ne približujejo.
- Vzdrževanje: Only qualified personnel should perform repairs. Use only genuine Pedrollo replacement parts.
3. Tehnične specifikacije
The PEDROLLO Electrobomba Top 5N pump features the following technical specifications:
| Funkcija | Specifikacija |
|---|---|
| Model | TOP5N |
| Moč | 1.25 KM |
| Vir napajanja | Električni kabel |
| Najvišja temperatura tekočine | 40 °C (104 °F) |
| ASIN | B07HMTR5CV |
| Proizvajalec | PEDROLLO |
4. Izdelek je končanview in komponente
The Pedrollo Top 5N is a submersible pump designed for efficient water transfer. Understanding its main components is crucial for proper installation and maintenance.
Figure 2: Internal components of the Pedrollo Top 5N pump. This diagram illustrates the motor, impeller, seals, and other internal parts, numbered for reference in a detailed parts list (not provided in this manual).
Slika 3: Eksplodirano view of Pedrollo Top 5N pump components. This view provides a clearer perspective on how the various parts assemble, including the float switch mechanism and discharge outlet.
5. Nastavitev in namestitev
Proper installation is critical for the pump's performance and longevity. Follow these steps carefully:
- Umestitev: Position the pump on a stable, flat surface at the bottom of the well, tank, or sump. Ensure there is sufficient space around the pump for water intake and cooling.
- Globina potopitve: Ensure the pump is fully submerged in the liquid during operation. Refer to the installation diagrams for minimum and maximum submersion depths.
- Izpustna cev: Connect a suitable discharge pipe to the pump's outlet. Use a non-return valve if the pump is used in an application where backflow could occur. Ensure all connections are watertight.
- Float Switch (if applicable): Adjust the float switch to the desired ON/OFF levels. The float switch automatically starts and stops the pump based on water levels. Ensure the float switch can move freely without obstruction.
- Električna povezava: Connect the pump to a grounded electrical outlet with the correct voltage and frequency. Do not use extension cords unless absolutely necessary and ensure they are rated for outdoor use and the pump's power requirements.

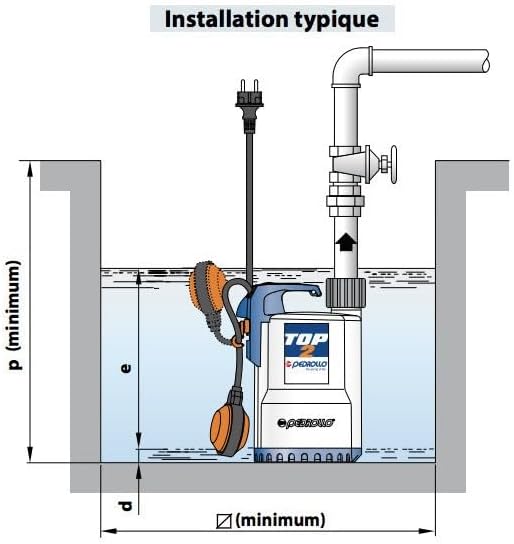

Figure 4: Typical installation diagram for a Pedrollo submersible pump with a float switch. This diagram illustrates the pump's placement, discharge pipe connection, and the float switch's position relative to water levels (e = minimum operating level, p = minimum pump depth).
Figure 5: Alternative typical installation diagram for a Pedrollo submersible pump. This diagram shows a similar setup, emphasizing the minimum water level required for pump operation and the correct positioning of the float switch.
6. Navodila za uporabo
Once installed, operating the Pedrollo Top 5N pump is straightforward:
- Začetni zagon: Ensure the pump is fully submerged and all connections are secure. Plug the pump into the grounded electrical outlet.
- Samodejno delovanje: If equipped with a float switch, the pump will start automatically when the water level rises to the 'ON' position and stop when it drops to the 'OFF' position.
- Spremljanje: Periodically check the pump's operation to ensure it is running smoothly and efficiently. Listen for unusual noises or vibrations.
- Suhi tek: Avoid dry running the pump, as this can cause severe damage to the motor and seals. The float switch is designed to prevent dry running in automatic mode.
7. Krivulje zmogljivosti
The performance curves illustrate the relationship between the pump's flow rate (Q) and its total head (HMT H) at a specific motor speed (n) and frequency. These curves are essential for determining if the pump meets the requirements of your specific application.
Figure 6: Performance curves for Pedrollo TOP series pumps (50 Hz, 2900 rpm). This graph shows the head (HMT H in meters and feet) versus flow rate (Debit Q in m³/h and l/min) for various TOP models, including TOP 5N. Locate the curve labeled "TOP5 N" to understand its specific performance characteristics.
To interpret the curve for your TOP 5N model, find the line labeled "TOP5 N". For a given flow rate on the horizontal axis (Debit Q), trace vertically up to the "TOP5 N" curve, then horizontally to the left axis to find the corresponding head (HMT H). This indicates the maximum height the pump can lift water at that specific flow rate.
8. Vzdrževanje
Regular maintenance ensures the longevity and optimal performance of your pump. Always disconnect the pump from the power supply before performing any maintenance.
- Čiščenje: Periodically clean the pump's intake screen to remove any debris that may obstruct water flow.
- Pregled: Inspect the power cord and plug for any signs of damage. Check for leaks around connections.
- Zimovanje: If the pump is used in an area subject to freezing temperatures, remove it from the water and store it in a frost-free location. Drain all water from the pump to prevent damage.
- Strokovna storitev: For internal repairs or complex issues, contact a qualified service technician or Pedrollo authorized service center.
9. Odpravljanje težav
Za pogoste težave in njihove možne rešitve glejte naslednjo tabelo:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Črpalka se ne zažene | Brez napajanja | Check power connection, circuit breaker, and fuse. |
| Črpalka se ne zažene | Float switch stuck or incorrectly adjusted | Ensure float switch moves freely and is at the correct level. |
| Pump runs but no water is discharged | Zamašen sesalni filter | Disconnect power and clean the intake screen. |
| Pump runs but no water is discharged | Air lock in the pump or discharge pipe | Ensure pump is fully submerged. Briefly lift and lower the pump to release trapped air. |
| Zmanjšan pretok | Partial blockage in intake or discharge pipe | Preverite in odstranite morebitne blokade. |
| Črpalka se nepričakovano ustavi | Overheating (thermal overload protection activated) | Allow pump to cool down. Check for blockages or dry running. Ensure proper ventilation if not fully submerged (though this is a submersible pump, overheating can still occur if flow is restricted). |
If the problem persists after attempting these solutions, contact Pedrollo customer support or a qualified technician.
10. Garancija in podpora
Pedrollo products are manufactured to high-quality standards and are covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Pedrollo webmesto.
For technical support, spare parts, or service inquiries, please contact your local Pedrollo dealer or authorized service center. When contacting support, please have your pump's model number (TOP5N) and serial number available.
