Campingaz VT1 Soudotorch X2000 PZ Soldering Lamp Navodila za uporabo

1. Uvod

Campingaz VT1 Soudotorch X2000 PZ is a versatile and powerful soldering lamp designed for various heating and soldering applications. It features an adjustable gas flow, a robust brass burner, and an automatic piezo ignition system for ease of use. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Soudotorch X2000 PZ.

2. Varnostne informacije

OPOZORILO: Neupoštevanje teh varnostnih navodil lahko povzroči hude telesne poškodbe ali materialno škodo.

• Pred uporabo naprave vedno preberite in razumite vsa navodila.
• Uporabite samo Campingaz CV 300 Plus gas cartridges with this appliance. Using other types of gas cartridges may be dangerous.
• Operate the torch in a well-ventilated area, away from flammable materials, liquids, and gases.
• Otroke in nepooblaščene osebe držite stran od delovnega območja.
• Do not touch the burner or any metal parts of the torch during or immediately after use, as they will be extremely hot. Allow the torch to cool completely before handling or storing.
• Never point the lit torch at yourself, other people, or animals.
• Check for gas leaks before each use. Apply soapy water to connections; bubbles indicate a leak. Do not use if a leak is detected.
• Store the torch and gas cartridges in a cool, dry place, away from direct sunlight and heat sources.
• Wear appropriate personal protective equipment, including heat-resistant gloves and eye protection, when operating the torch.

3. Nastavitev

1. Pripravite delovno območje: Ensure your work area is clean, well-ventilated, and free from any flammable materials. Have a fire extinguisher or water source readily available.
2. Attach the Gas Cartridge:

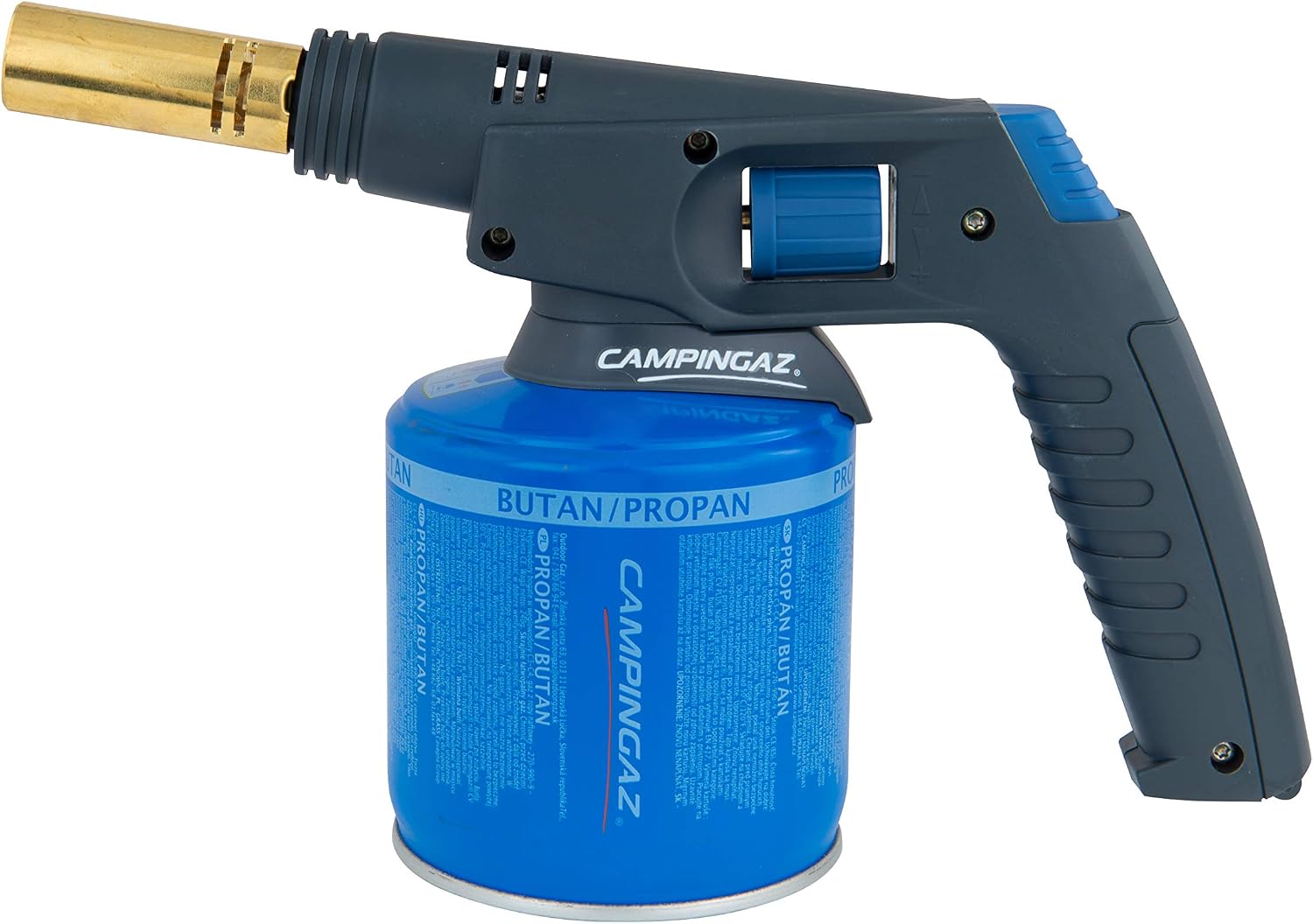

   Slika: Campingaz Soudotorch X2000 PZ with a blue CV 300 Plus gas cartridge securely attached to its base.

   Align the torch head with the Campingaz CV 300 Plus gas cartridge. Screw the torch head onto the cartridge until it is hand-tight. Do not overtighten. Ensure a secure connection to prevent gas leaks.



   Image: A hand demonstrating the proper grip on the Campingaz Soudotorch X2000 PZ, showing the torch head connected to the gas cartridge.

3. Preverite puščanje: After attaching the cartridge, perform a leak test. Apply a small amount of soapy water to the connection point. If bubbles appear, there is a leak. Tighten the connection slightly or replace the cartridge if necessary. Do not ignite the torch if a leak is present.

4. Navodila za uporabo

1. Vžig:


   Image: The Soudotorch X2000 PZ in active use, emitting a focused blue flame from its brass burner.

   Turn the gas flow control knob (usually located near the handle) counter-clockwise to open the gas valve slightly. Press the piezo ignition button. The torch should ignite immediately. If it does not ignite, close the gas valve, wait a few seconds, and repeat the process.

2. Prilagajanje plamena: Use the gas flow control knob to adjust the size and intensity of the flame. Turn clockwise to decrease the flame and counter-clockwise to increase it. For most soldering and heating tasks, a stable, blue flame is ideal.
3. Preheating for Inverted Use: The Soudotorch X2000 PZ can be used upside down after a 1-minute preheating period. Operate the torch in an upright position for at least one minute to allow the burner to reach operating temperature before tilting or inverting it.
4. Aplikacije:


   Image: The Soudotorch X2000 PZ being used to gently defrost a frozen outdoor water tap, showing the controlled flame application.



   Image: The Soudotorch X2000 PZ in use for soldering two copper pipes together, demonstrating its precision for plumbing tasks.



   Slika: Podrobna view of the Soudotorch X2000 PZ applying heat to a copper pipe joint during a soldering operation.



   Image: The Soudotorch X2000 PZ being used to solder components of a small metal art sculpture, highlighting its versatility.



   Image: The Soudotorch X2000 PZ soldering pipes against a wall, with a heat shield protecting the surrounding surface.

   The torch is suitable for various tasks including soldering, brazing, paint stripping, defrosting pipes, and other heating applications. Always direct the flame carefully and maintain a safe distance from the workpiece and surrounding materials.

5. Ugašati: Turn the gas flow control knob clockwise until the flame extinguishes completely. Ensure the knob is fully closed to prevent gas leakage. Allow the torch to cool down before detaching the gas cartridge or storing.

5. Vzdrževanje

• Čiščenje: Keep the torch clean and free from debris. Use a soft, dry cloth to wipe down the exterior. Do not use abrasive cleaners or solvents.
• Shranjevanje: When not in use, detach the gas cartridge and store it separately in a cool, dry, well-ventilated area, away from direct sunlight and heat. Store the torch in its original packaging or a protective case to prevent damage.
• Pregled: Regularly inspect the torch for any signs of wear, damage, or gas leaks. Pay close attention to the burner nozzle and gas connections. If any damage is found, do not use the torch and contact customer support.

6. Odpravljanje težav

Problem: Torch does not ignite.

Možni vzroki in rešitve:

• Gas cartridge is empty or improperly connected.
  Solution: Replace the gas cartridge or ensure it is securely attached.
• Gas flow control knob is closed.
  Solution: Open the gas flow control knob slightly.
• Piezo vžigalnik je pokvarjen.
  Solution: Contact customer support for assistance.

Problem: Flame is weak or inconsistent.

Možni vzroki in rešitve:

• Low gas level in the cartridge.
  Solution: Replace the gas cartridge.
• Partial blockage in the burner nozzle.
  Solution: Ensure the burner is clean and free from debris. Do not attempt to clear blockages with sharp objects.
• Improper gas flow adjustment.
  Solution: Adjust the gas flow control knob.

Problem: Gas leak detected (e.g., smell of gas, bubbles during leak test).

Možni vzroki in rešitve:

• Loose cartridge connection or damaged seal.
  Solution: Immediately turn off the gas flow. Move the torch to a well-ventilated outdoor area. Tighten the cartridge connection or replace the cartridge if the seal is damaged. If the leak persists, do not use the torch and contact customer support.

7. Specifikacije

8. Garancija in podpora

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or inquiries regarding your Campingaz VT1 Soudotorch X2000 PZ, please visit the official Campingaz webali se obrnite na njihov oddelek za pomoč uporabnikom.
