Uvod
This manual provides essential instructions for the setup, operation, and maintenance of your Märklin 22786 BR 50 dB Steam Freight Locomotive. Please read this manual thoroughly before using your model to ensure safe and optimal performance. This model is recommended for users aged 15 years and older.

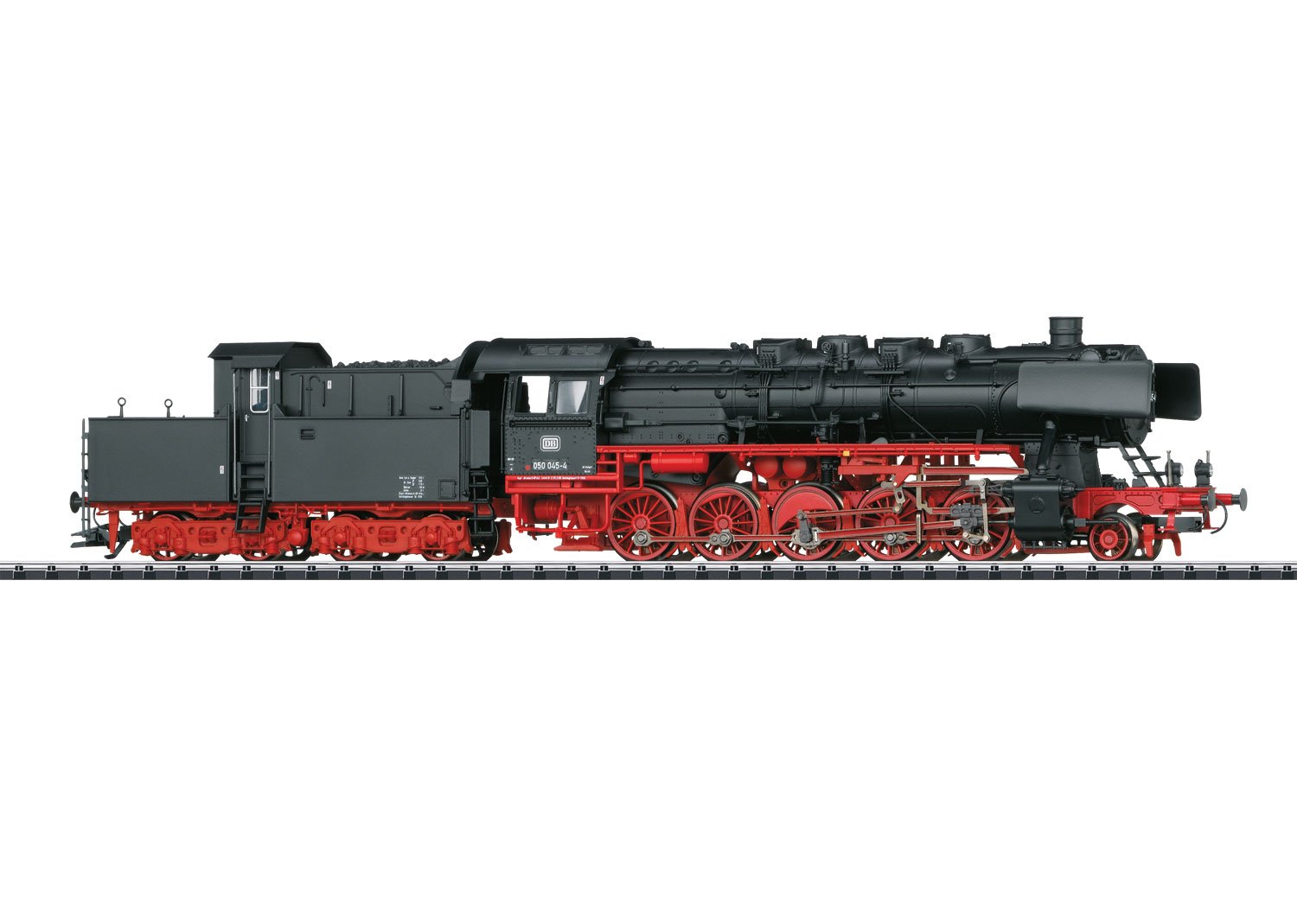

Image: The Märklin 22786 BR 50 dB Steam Freight Locomotive, showcasing its detailed design and metal construction.
Nastavitev
The Märklin 22786 locomotive comes pre-assembled and ready for use. No complex assembly is required. Follow these steps to prepare your locomotive for its first run:
- Razpakiranje: Carefully remove the locomotive from its packaging. Retain the original packaging for future storage or transport.
- Postavitev sledi: Place the locomotive gently onto your Märklin H0 gauge track. Ensure all wheels are correctly seated on the rails.
- Napajalni priključek: Connect your digital control unit to the track as per its own instruction manual. This locomotive features integrated digital functions.
- Začetni pregled: Visually inspect the locomotive for any loose parts or damage that may have occurred during shipping.
Opomba: This model includes detailed figures of an engineer and stoker within the cab, enhancing its realistic appearance.
Delovanje
The Märklin 22786 locomotive is equipped with integrated digital functions, allowing for precise control and realistic features.
Digital Functions:
- Vožnja: Control the speed and direction using your digital control unit. The locomotive features a powerful motor for smooth operation.
- Zvočne funkcije: The locomotive includes a wide range of realistic sound functions. Refer to your digital control unit's manual for specific function assignments to activate sounds such as steam chuffs, whistle, bell, and more.
- Osvetlitev:
- Headlights/Taillights: Digital switchable front and rear lighting.
- Cab Lighting: The cab interior lighting can also be digitally switched on and off.
Always operate the locomotive on clean tracks to ensure optimal electrical contact and smooth running.
Vzdrževanje
Regular maintenance ensures the longevity and reliable performance of your Märklin 22786 locomotive.
- Cleaning Wheels and Track: Keep the locomotive wheels and track clean from dust and debris. Use a soft cloth or a specialized track cleaning tool. Dirty tracks can lead to erratic operation and poor electrical contact.
- Mazanje: Periodically lubricate moving parts such as axles and gear mechanisms with a small amount of specialized model train oil or grease. Refer to Märklin's general maintenance guidelines for specific lubrication points and frequency. Avoid over-lubrication.
- Shranjevanje: When not in use, store the locomotive in its original packaging or a protective case to prevent dust accumulation and damage. Store in a dry, temperature-controlled environment.
Odpravljanje težav
If you encounter issues with your locomotive, consult the following common troubleshooting steps:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Locomotive does not move or moves erratically. |
|
|
| Luči ne delujejo. |
|
|
| Sound functions are not working. |
|
|
If these steps do not resolve the issue, please contact Märklin customer support.
Specifikacije
| Številka modela | 22786 |
| Znamka | Märklin |
| Proizvajalec | Trix |
| Dimenzije izdelka | 38.5 x 11.3 x 7 cm |
| Teža izdelka | 839 g |
| Material | Kovina |
| Zahtevana montaža | št |
| Priporočena starost | 15 let in več |
| Globalna številka trgovskega artikla (GTIN) | 04028106227868 |
| Datum izdaje | 1. maj 2017 |
Garancija in podpora
Specific warranty information for the Märklin 22786 locomotive is not provided in this manual. Please refer to the official Märklin webspletno mesto ali se za podrobne garancijske pogoje obrnite na prodajalca.
For technical support, spare parts, or further assistance, please visit the official Märklin webspletno mesto ali se obrnite na njihovo službo za pomoč strankam. Pri stiku s podporo imejte pri roki dokazilo o nakupu.
Märklin Official Webspletno mesto: www.maerklin.de
