Uvod
This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Sharp 1.5 HP Cool Split Air Conditioner, Model AH-A12ZSE. Please read this manual thoroughly before using the appliance and keep it for future reference.

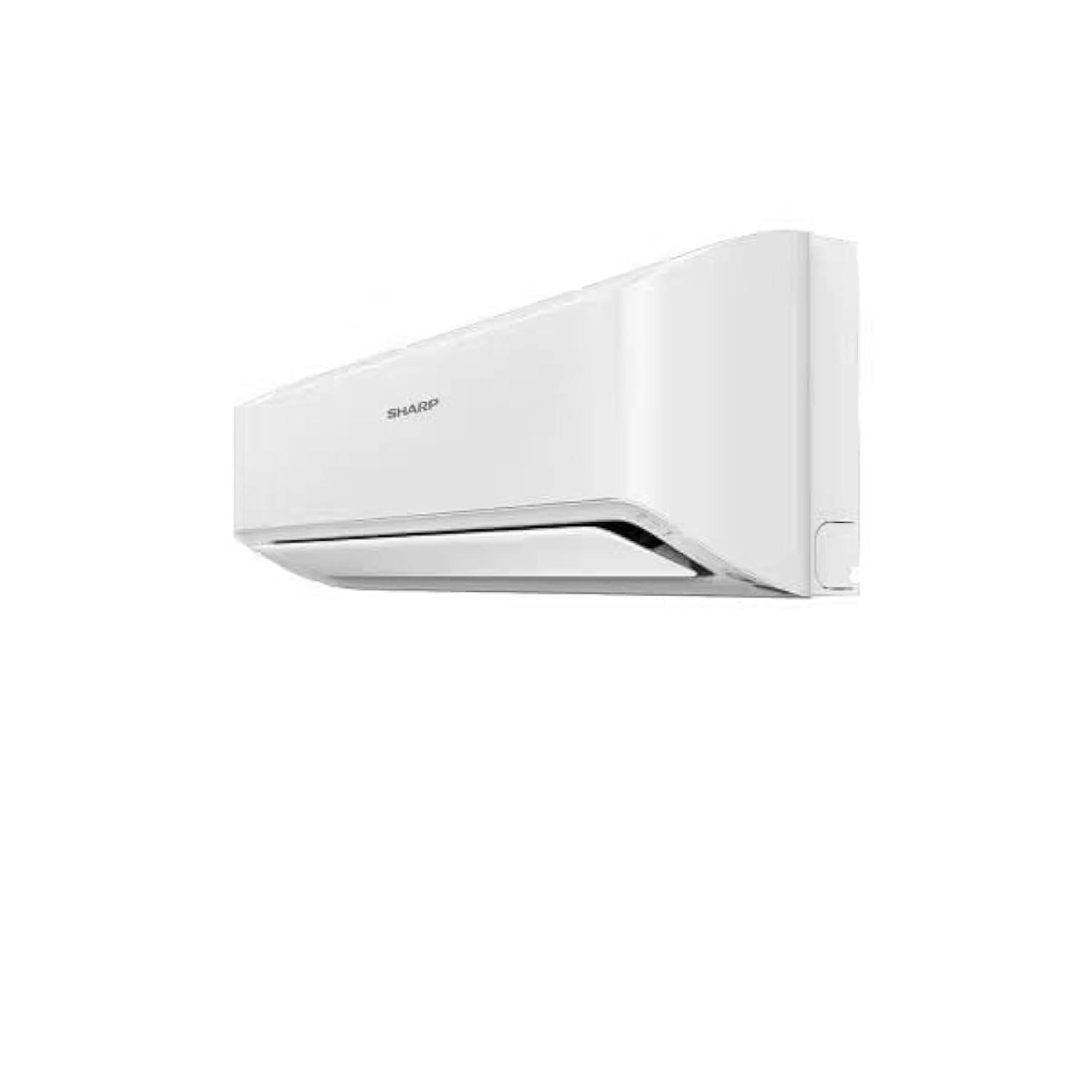

Image: Sharp 1.5 HP Cool Split Air Conditioner, showing both indoor and outdoor units.
Varnostne informacije
Pri uporabi električnih naprav vedno upoštevajte osnovne varnostne ukrepe, da zmanjšate tveganje požara, električnega udara in poškodb oseb. To vključuje:
- Ensure the power supply matches the specifications listed on the unit.
- Klimatske naprave ne uporabljajte z mokrimi rokami.
- V odprtino za dovod ali izstop zraka ne vstavljajte predmetov.
- Otroci naj ne bodo v bližini enote.
- Ne poskušajte sami popravljati enote. Obrnite se na usposobljeno servisno osebje.
- Poskrbite za ustrezno ozemljitev, da preprečite električni udar.
- Pred čiščenjem ali vzdrževanjem izklopite napajanje.
Konec izdelkaview
Ključne značilnosti:
- 1.5 HP Cooling Capacity (12000 BTU/hour)
- Two-Way Auto Swing for optimal air distribution (up and down)
- Powerful Jet Mode for rapid cooling
- Dry Function to reduce humidity
- 12-hour On/Off Timer and 1-hour Off Timer
- Fan Mode Control with Auto and 3-speed settings
- Auto Restart Function after power interruptions
- Wireless LCD Remote Control
- Uses eco-friendly R410a refrigerant
- Anti-corrosion Tropical Compressor (Outdoor Unit)
- Equipped with a dust filter
- Energy Efficiency Class B
Vključene komponente:
- Notranja enota
- Zunanja enota
- Outdoor Unit Bracket
- 3-meter Connection Pipes
- Daljinski upravljalnik
Nastavitev
Installation should be performed by a qualified technician. This section provides a general overview postopka namestitve.
- Izbira mesta: Choose a location for the indoor unit that allows for even air distribution and easy drainage. The outdoor unit should be placed in a well-ventilated area, away from direct sunlight or heat sources.
- Montaža notranje enote: Securely mount the indoor unit to the wall using the provided bracket, ensuring it is level.
- Montaža zunanje enote: Install the outdoor unit on a stable surface or wall bracket, ensuring proper clearance for airflow.
- Connecting Refrigerant Pipes: Connect the refrigerant pipes between the indoor and outdoor units. Ensure all connections are tight to prevent leaks.
- Električna napeljava: Connect the power supply and communication wiring according to the wiring diagram in the full installation manual. Ensure proper grounding.
- Montaža drenažnih cevi: Install the drainage pipe from the indoor unit to ensure proper condensate removal.
- Vacuuming and Test Run: Evacuate the refrigerant lines and perform a test run to check for proper operation and cooling performance.
Navodila za uporabo
Your air conditioner can be operated using the wireless LCD remote control.
Osnovno delovanje:
- Vklop/izklop: Pritisnite VKLOP/IZKLOP gumb za zagon ali zaustavitev enote.
- Izbira načina: Pritisnite NAČIN button to cycle through modes: Cool, Dry, Fan.
- Prilagoditev temperature: Uporabite TEMP in TEMP DOW gumbe za nastavitev želene temperature.
- Hitrost ventilatorja: Pritisnite FAN button to select fan speed (Low, Medium, High, Auto).
- Funkcija nihanja: Pritisnite SWING button to activate or deactivate the automatic vertical air swing.
Napredne funkcije:
- Powerful Jet Mode: Activate this mode for rapid cooling. Refer to the remote control section for specific button.
- Funkcija časovnika: Set the 12-hour On/Off timer or the 1-hour Off timer using the ČASOVNIK gumb na daljinskem upravljalniku.
- Funkcija sušenja: Select the Dry mode to dehumidify the room without significant cooling.
Vzdrževanje
Regular maintenance ensures optimal performance and extends the lifespan of your air conditioner. Always disconnect power before performing maintenance.
Čiščenje zračnega filtra:
- Odprite sprednjo ploščo notranje enote.
- Odstranite zračne filtre.
- Filtre očistite s sesalnikom ali jih operite z mlačno vodo in blagim detergentom.
- Rinse thoroughly and allow to dry completely in a shaded area.
- Ponovno namestite suhe filtre in zaprite sprednjo ploščo.
Pogostost: Zračne filtre čistite vsaka dva tedna ali pogosteje, če enoto uporabljate v prašnem okolju.
Čiščenje enote:
- Notranjo enoto obrišite z mehko, suho krpo. Za trdovratno umazanijo uporabiteamp krpo z nevtralnim detergentom in nato obrišite do suhega.
- Ne uporabljajte agresivnih kemikalij, abrazivnih čistil ali vroče vode.
- Občasno preverite zunanjo enoto za morebitne ovire (listje, odpadki) in jih odstranite.
Odpravljanje težav
Preden se obrnete na servis, preverite naslednje pogoste težave:
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Enota se ne zažene | Ni napajanja, odklopnik se je sprožil, baterije daljinskega upravljalnika so skoraj prazne. | Preverite napajanje, ponastavite odklopnik in zamenjajte baterije daljinskega upravljalnika. |
| Nezadostno hlajenje | Umazan zračni filter, blokirana zunanja enota, odprta vrata/okna, previsoka nastavitev temperature. | Clean filter, clear obstructions, close openings, lower temperature setting. |
| Nenavaden hrup | Ohlapni deli, tujki, enota ni poravnana. | Preverite, ali so deli ohlapni, odstranite predmete in se prepričajte, da je enota poravnana. Če hrup ne preneha, se obrnite na servis. |
| Puščanje vode iz notranje enote | Zamašena odtočna cev, nepravilna namestitev. | Check and clear drain pipe. If issue persists, contact a qualified technician. |
If the problem persists after checking these points, please contact Sharp customer service or a qualified technician.
Specifikacije
| Funkcija | Podrobnost |
|---|---|
| Znamka | Ostra |
| Številka modela | AH-A12ZSE |
| Hladilna zmogljivost | 12000 BTU/hour (1.5 HP) |
| barva | Bela |
| Hladilno sredstvo | R-410A |
| voltage | 220-240 V |
| Pogostost | 50 Hz |
| Električna energija | 1090 W |
| Razmerje energetske učinkovitosti (EER) | 11.5 BTU/uro |
| Energy Consumption Efficiency Class | B |
| Sezonsko razmerje energetske učinkovitosti (SEER) | 15 |
| Nivo hrupa | 40 dB |
| Dimenzije notranje enote (ŠxVxG) | 879 x 289 x 229 mm |
| Dimenzije zunanje enote (ŠxVxG) | 760 x 540 x 270 mm |
| Neto teža notranje enote | 9 kg |
| Neto teža zunanje enote | 30 kg |
| Dolžina priključne cevi | 3 metrov |
| Vrsta filtra | Filter za prah |
| Vrsta kompresorja | Vrtljivo pomikanje |
| Država izvora | Egipt |
Garancija in podpora
Your Sharp 1.5 HP Cool Split Air Conditioner comes with a full 5-year free warranty.
For warranty claims, technical support, or service requests, please contact Sharp customer service. Keep your purchase receipt and product model number (AH-A12ZSE) readily available when contacting support.
For more information, you may visit the official Sharp webspletnega mesta ali se obrnite na lokalnega pooblaščenega prodajalca.
