MOMO Steering Wheel Hub Adapter 8010-12 for Volkswagen Rabbit (1978-1984) Instruction Manual

Uvod

This instruction manual provides detailed guidance for the installation and maintenance of your MOMO Steering Wheel Hub Adapter, Part # 8010-12. This adapter is specifically designed for use with Volkswagen Rabbit models manufactured between 1978 and 1984. Please read this manual thoroughly before beginning installation to ensure proper fitment and safe operation.

The MOMO hub adapter facilitates the connection of an aftermarket steering wheel to your vehicle's steering column, ensuring a secure and functional interface.

Varnostne informacije

• Always disconnect the vehicle's battery before beginning any electrical work to prevent accidental airbag deployment or electrical shorts.
• Prepričajte se, da je vozilo parkirano na ravni površini z zategnjeno parkirno zavoro.
• Nosite ustrezno osebno zaščitno opremo, vključno z rokavicami in zaščito za oči.
• Če ste glede katerega koli koraka namestitve negotovi, se posvetujte z usposobljenim avtomobilskim tehnikom.
• Improper installation can lead to loss of steering control, airbag malfunction, or other safety hazards.

Vsebina paketa

Preden nadaljujete z namestitvijo, preverite, ali so prisotne vse komponente:

• MOMO Steering Wheel Hub Adapter (Part # 8010-12)
• Mounting hardware (bolts, washers, nuts - specific to your steering wheel)
• Horn button retaining ring (if applicable)
• Horn wire/connector

Note: Aftermarket steering wheel and horn button are sold separately.

Nastavitev in namestitev

The following steps outline the general procedure for installing the MOMO Steering Wheel Hub Adapter. Specific vehicle disassembly may vary. Refer to your vehicle's service manual for detailed instructions on removing the factory steering wheel.

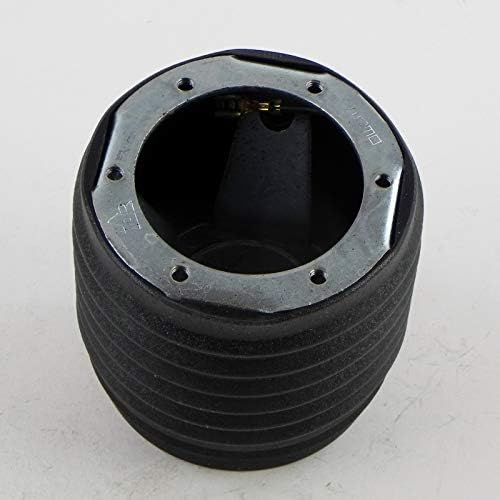

An image showing the MOMO Steering Wheel Hub Adapter, a black cylindrical component with a metal plate featuring six bolt holes on top, designed for connecting an aftermarket steering wheel to a vehicle's steering column.

Potrebna orodja:

• Komplet ključev
• Momentni ključ
• Izvijači (križni in ploščati)
• Steering wheel puller (if required for factory wheel removal)
• Wire strippers/crimpers (for horn connection)

Koraki namestitve:

1. Pripravite vozilo: Disconnect the negative terminal of the vehicle's battery. Ensure the steering wheel is centered and the front wheels are straight.
2. Remove Factory Steering Wheel: Carefully remove the horn pad, disconnect the horn wire, and any airbag connectors (if applicable). Use a socket wrench to remove the central nut securing the steering wheel. A steering wheel puller may be necessary to remove the wheel from the steering column shaft.
3. Install Hub Adapter: Slide the MOMO hub adapter onto the steering column shaft. Ensure it seats fully and aligns with the splines.
4. Secure Hub Adapter: Reinstall the central nut onto the steering column shaft and tighten it to the vehicle manufacturer's specified torque. Do not overtighten.
5. Connect Horn Wire: Connect the horn wire from the vehicle to the horn contact on the hub adapter. Ensure a secure connection.
6. Mount Aftermarket Steering Wheel: Position your aftermarket steering wheel onto the hub adapter, aligning the bolt holes. Secure the steering wheel using the provided mounting hardware (bolts, washers) and tighten them evenly in a star pattern to the steering wheel manufacturer's specifications.
7. Install Horn Button: Connect the horn button to its wiring and secure it into the steering wheel.
8. Končna preverjanja: Reconnect the vehicle's battery. Test the horn and ensure the steering wheel is securely fastened and operates smoothly. Turn the steering wheel lock-to-lock to confirm no binding or interference.

Delovni vidiki

Once installed, the MOMO Steering Wheel Hub Adapter functions as a permanent interface between your vehicle's steering column and an aftermarket steering wheel. No specific "operation" is required beyond normal driving. However, regular checks are recommended.

Vzdrževanje

To ensure continued safety and performance, periodic inspection of the hub adapter and steering wheel assembly is recommended:

• Preverite pritrdilne elemente: Every 3-6 months, or after any significant impact, inspect all mounting bolts for tightness. Retorque if necessary according to the steering wheel manufacturer's specifications.
• Pregled obrabe: Check the hub adapter and steering column for any signs of wear, cracks, or damage.
• Horn Functionality: Periodically test the horn to ensure it is working correctly.

Odpravljanje težav

• Steering Wheel Feels Loose:

  Možen vzrok: Mounting bolts are not sufficiently tightened or the central nut on the steering column is loose.

  rešitev: Recheck and retorque all fasteners according to specifications. Ensure the hub adapter is fully seated on the steering column splines.

• Horn Not Working:

  Možen vzrok: Disconnected horn wire, faulty horn button, or incorrect wiring.

  rešitev: Verify all horn connections are secure. Test the horn button for continuity. Check vehicle's horn fuse.

• Volan ni centriran:

  Možen vzrok: Steering wheel was not centered before removal, or the hub adapter/steering wheel was installed off-center.

  rešitev: Re-center the vehicle's front wheels, then remove and reinstall the steering wheel and hub adapter, ensuring proper alignment.

Specifikacije

Informacije o garanciji

Specific warranty details for the MOMO Steering Wheel Hub Adapter 8010-12 are not provided in this document. Please refer to the official MOMO website or contact your authorized MOMO dealer for comprehensive warranty information.

Informacije o podpori

For technical assistance, installation questions, or product support, please contact MOMO customer service through their official website or the retailer from whom the product was purchased. Ensure you have your product model number (8010-12) and vehicle details readily available.
