1. Uvod
The Rotolight RL48-B Stealth HD LED Ringlight is a versatile and portable continuous light source designed for both HD cinematography, videography, and DSLR photography. It provides naturally warm, shadowless light with studio-accurate color temperatures. This manual provides essential information for the safe and effective use of your RL48-B.
Slika 1: Spredaj view of the Rotolight RL48-B Stealth HD LED Ringlight.
2. Varnostne informacije
Please read all safety instructions before using the Rotolight RL48-B. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Naprave ne izpostavljajte vodi ali prekomerni vlagi.
- Enote ne upravljajte z mokrimi rokami.
- Ne blokirajte prezračevalnih odprtin.
- Uporabljajte samo predpisane baterije (3 baterije AA).
- Enote ne razstavljajte ali spreminjajte. Vsa servisna dela prepustite usposobljenemu osebju.
- Hraniti izven dosega otrok.
- Izogibajte se neposredni izpostavljenosti oči LED luči.
3. Kaj je v škatli
Preverite, ali so v embalaži vsi elementi:
- 1x Rotolight RL48-B HD LED Ring light
- Lee 205, 3200 CTO, & 218 CTB filters
- Lee 209 & 298 neutral density filters
- Lee 216 Diffusion filter
- 279 1/8 Minus Green filter
Figure 2: Rotolight RL48-B with a selection of included filters.
4. Nastavitev
4.1 Namestitev baterije
- Locate the battery compartment on the rear of the RL48-B unit.
- Odprite pokrov prostora za baterije.
- Vstavite 3 AA bateriji in pazite na pravilno polarnost (+/-).
- Trdno zaprite pokrov prostora za baterije.
Slika 3: Zadaj view of the RL48-B, indicating the battery compartment.
4.2 Namestitev filtra
- Select the desired Lee filter from the provided kit.
- Insert the filter into the designated filter holder slot on the front of the RL48-B.
- Ensure the filter is seated properly and securely.
The RL48-B includes a filter-holder for easy attachment of the supplied Lee Filters. These filters allow for adjustment of color temperature (CTO, CTB) and light intensity (Neutral Density), as well as diffusion.
5. Delovanje
5.1 Vklop/izklop
To power on the Rotolight RL48-B, locate the power button on the side of the unit and press it. Press again to power off.
5.2 Adjusting Light Output (Dimming)
The RL48-B's light output can be accurately dimmed using the supplied Neutral Density (ND) filters. These filters reduce the light intensity over a range of 1.5 aperture stops. Experiment with different ND filters to achieve the desired brightness.
5.3 Prilagajanje barvne temperature
The included Lee Filters allow for precise color temperature adjustments:
- Lee 205, 3200 CTO: Converts daylight (5600K) to Tungsten (3200K) for warmer tones.
- Lee 218 CTB: Converts Tungsten (3200K) to Daylight (5600K) for cooler tones.
- Lee 216 Diffusion: Softens the light output.
- 279 1/8 Minus Green: Corrects for green casts from fluorescent lighting.
Select and insert the appropriate filter based on your desired color temperature and lighting conditions.
5.4 Možnosti namestitve
The RL48-B offers flexible mounting solutions:
- Shotgun Microphone Mount: The unit mounts natively over a shotgun microphone.
- Čevelj za dodatke: Using the optional Rotolight stand (sold separately), it can be mounted via an accessory shoe on a camera.
- Tripod/Lighting Stand: The optional Rotolight stand also allows mounting onto a standard tripod or lighting stand.
- Rail Support System: Can be integrated into a rail support system with appropriate adapters.

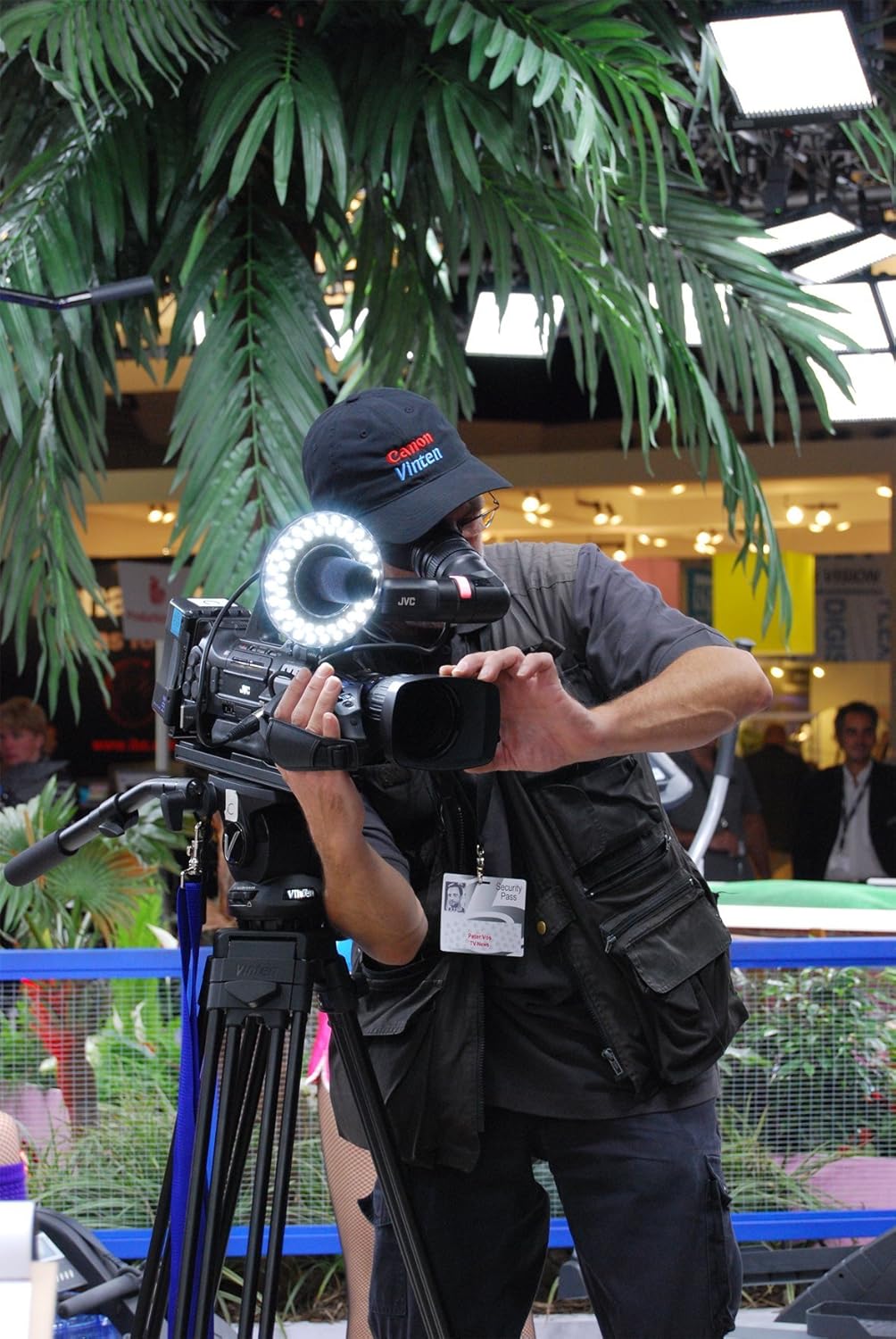

Figure 4: RL48-B mounted on a camera, demonstrating its compatibility with a shotgun microphone.
Figure 5: The RL48-B in use by a photographer, providing illumination.
6. Vzdrževanje
6.1 Čiščenje
- Zunanjost enote obrišite z mehko, suho krpo.
- Za trdovratne madeže uporabite rahloamp krpo z blagim milom, nato pa obrišite do suhega.
- Ne uporabljajte abrazivnih čistil ali topil.
- Clean filters gently with a microfiber cloth to avoid scratches.
6.2 Shranjevanje
- Store the RL48-B in a cool, dry place away from direct sunlight.
- Če enote ne boste uporabljali dlje časa, odstranite baterije, da preprečite puščanje.
7. Odpravljanje težav
| Težava | Možen vzrok | rešitev |
|---|---|---|
| Luč se ne vklopi. | Prazne ali nepravilno vstavljene baterije. | Baterije zamenjajte z novimi baterijami AA in pri tem pazite na pravilno polarnost. |
| Svetlobni izhod je prešibek. | Neutral Density (ND) filter is installed. | Remove or replace the ND filter with a lighter one. Ensure batteries are fresh. |
| Light color appears incorrect. | Incorrect color temperature (CTO/CTB) filter installed. | Replace the filter with the appropriate CTO or CTB filter for your desired color temperature. |
| Med delovanjem se enota segreva. | Normalno delovanje. | This is normal for LED lights. Ensure adequate ventilation and do not cover the unit. |
8. Specifikacije
- Model: RL48-B
- LED: 48 color-accurate LEDs
- Izhod: Equivalent to 80W tungsten output
- Barvna temperatura: Adjustable via filters (6300K, 5600K, 4100K, 3200K)
- Zatemnitev: Accurate dimming using Neutral Density filters (1.5 aperture stops range)
- vir energije: 3x AA baterije
- Življenjska doba baterije: Approximately 4 hours (with specified batteries)
- Dimenzije izdelka: 5.51 x 5.51 x 1.57 palcev
- Teža artikla: 6 unč
- Proizvajalec: Rotolight
- GTIN: 05060222850253
Slika 6: Stranski profesionalecfile of the RL48-B, highlighting its compact design.
9. Garancija in podpora
Rotolight products are manufactured to high standards and come with a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Rotolight webmesto.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Rotolight customer service through their official webspletnega mesta ali kontaktnih podatkov, navedenih na embalaži izdelka.
Rotolight Official Webspletno mesto: www.rotolight.com
