Alpine SPE-6000 6.5-inch 2-Way Coaxial Car Speaker Instruction Manual

Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of your Alpine SPE-6000 6.5-inch 2-Way Type-E Coaxial Car Speakers. These speakers are designed to deliver clear and balanced audio performance in your vehicle. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

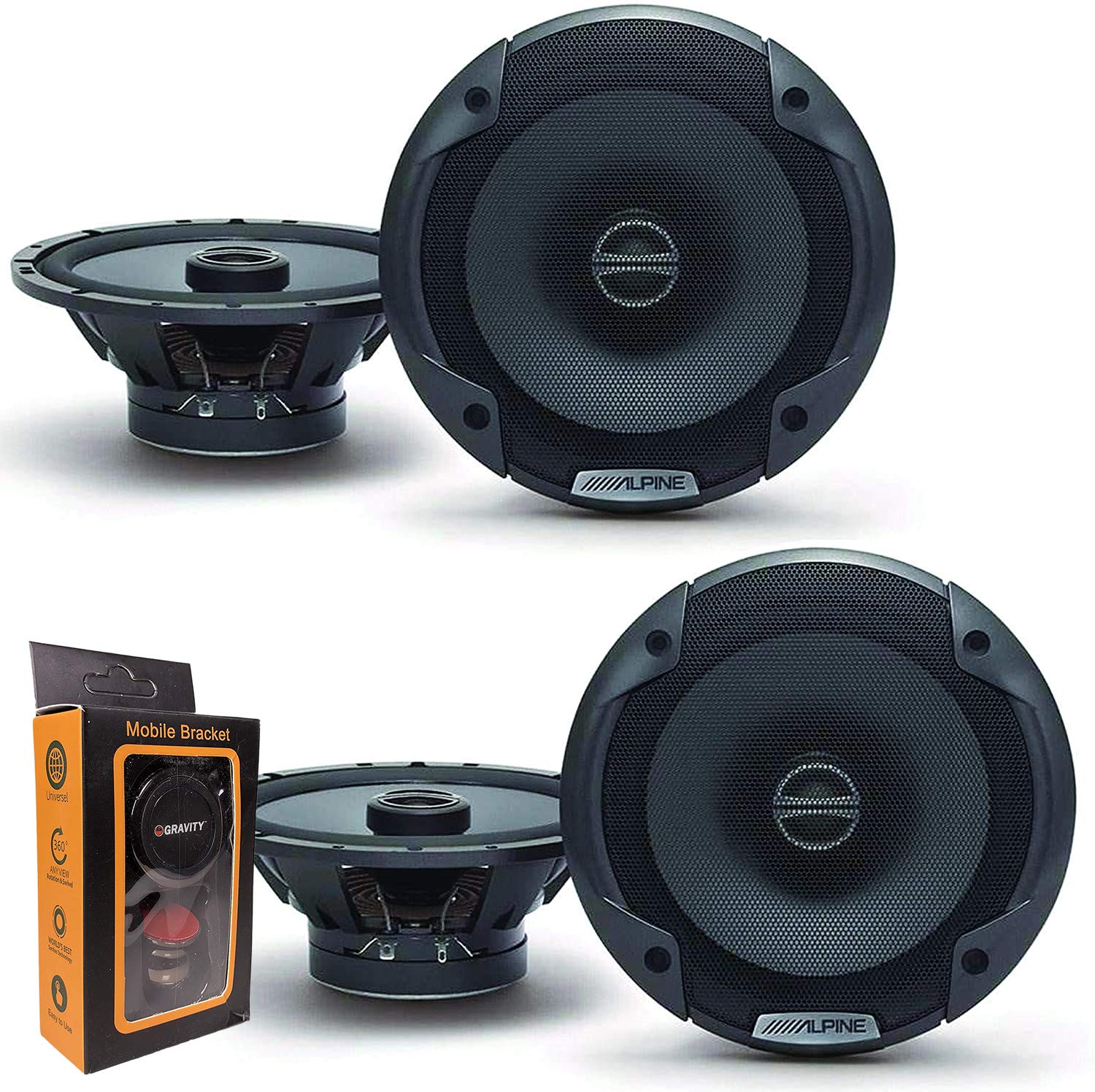

Slika: spredaj view of the Alpine SPE-6000 speaker, showcasing its design with a protective grille and central tweeter.

The SPE-6000 features a polypropylene cone with pearl mica injection for robust bass response, a 3/4-inch silk soft dome tweeter for clear highs, and a durable injection-molded frame. The speakers are rated for 60 watts RMS power handling per speaker (120 watts per pair) and have a 4-ohm impedance.

Nastavitev in namestitev

Pravilna namestitev je ključnega pomena za optimalno delovanje in varnost. Če niste prepričani o katerem koli koraku, se posvetujte s strokovnim monterjem.

1. Razpakiranje in pregled

• Previdno odstranite vse komponente iz embalaže.
• Verify that all parts are present and undamaged. Refer to the "What's in the Box" section for a list of included items.

2. Premisleki o montaži

These speakers are designed for a mounting diameter of 5-1/2 inches (13.97 cm) and a top-mount depth of 2-3/8 inches (6.03 cm). Ensure the chosen mounting location in your vehicle provides adequate space and clearance for the speaker magnet and frame.

Slika: Stranski profesionalecfile of the Alpine SPE-6000 speaker, illustrating its compact design and mounting depth for installation planning.

3. Povezave ožičenja

1. Disconnect the vehicle's battery negative terminal before starting any wiring.
2. Priključite žice zvočnikov iz vašega amplifier or head unit to the corresponding terminals on the SPE-6000 speakers. Ensure correct polarity (positive to positive, negative to negative) to prevent phase issues.
3. Secure all connections using appropriate connectors or soldering, and insulate them to prevent short circuits.
4. The speakers have a 4-ohm impedance. Ensure your amplifier or head unit is stable at this impedance.

4. Pritrditev zvočnikov

• Once wired, carefully place the speakers into their mounting locations.
• Use the provided screws or appropriate fasteners to secure the speakers firmly. Do not overtighten.
• Reinstall any grilles or trim panels.

5. Končni pregled

• Ponovno priključite negativni pol akumulatorja vozila.
• Test the audio system at a low volume level to confirm proper operation of all speakers.

Upravljanje zvočnikov

The Alpine SPE-6000 speakers are designed to reproduce a wide range of frequencies with clarity. Once installed, their operation is primarily controlled by your car's head unit or amplifier.

Nastavitve zvoka

• Nadzor glasnosti: Prilagodite glasnost na udobno raven poslušanja. Izogibajte se pretirano visoki glasnosti dlje časa, da preprečite poškodbe zvočnikov.
• Nastavitev nizkih/visokih tonov: Use your head unit's equalizer or tone controls to fine-tune the sound to your preference. The SPE-6000 speakers have a frequency response of 68-20,000 Hz.
• Fader/Ravnotežje: Adjust these settings to optimize the sound stage v vašem vozilu.
• Crossover Settings (if applicable): Če uporabljate zunanji amplifier with crossover functions, set the high-pass filter (HPF) to protect the speakers from extreme low frequencies, typically around 80-100 Hz, depending on your system.

These speakers are not designed to function as subwoofers. While they provide good bass response for their size, they are optimized for mid-range and high-frequency reproduction.

Vzdrževanje in nega

To ensure the longevity and optimal performance of your Alpine SPE-6000 speakers, follow these simple maintenance guidelines:

• Čiščenje: Gently wipe the speaker grilles and surrounds with a soft, dry, or slightly damp cloth. Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the speaker materials.
• Varstvo okolja: While designed for automotive use, avoid exposing the speakers to excessive moisture, direct sunlight for prolonged periods, or extreme temperatures.
• Stopnje glasnosti: Operate the speakers within their rated power handling limits. Continuous operation at distorted or excessively high volume levels can cause damage.
• Pregled: Občasno preverite nosilce zvočnikov in ožičenje, da se prepričate, da so trdno pritrjeni.

Odpravljanje težav

If you experience issues with your Alpine SPE-6000 speakers, refer to the following common problems and solutions:

Če težava po poskusu teh rešitev še vedno obstaja, se obrnite na podporo strankam Alpine ali usposobljenega tehnika za avtomobilski avdio sistem.

Tehnične specifikacije

Informacije o garanciji

Alpine products are manufactured to high-quality standards. This product is covered by a manufacturer's limited warranty. The specific terms and duration of the warranty may vary by region and purchase location. Please retain your proof of purchase for warranty claims.

For detailed warranty information, including coverage, exclusions, and the claims process, please refer to the warranty card included with your product or visit the official Alpine webmesto.

Podpora uporabnikom

If you require further assistance, have questions about your Alpine SPE-6000 speakers, or need technical support, please contact Alpine customer service.

You can typically find contact information (phone numbers, email, or support portals) on the official Alpine webspletnem mestu ali v dokumentaciji, ki ste jo dobili ob nakupu.

When contacting support, please have your product model number (SPE-6000) and proof of purchase readily available.
